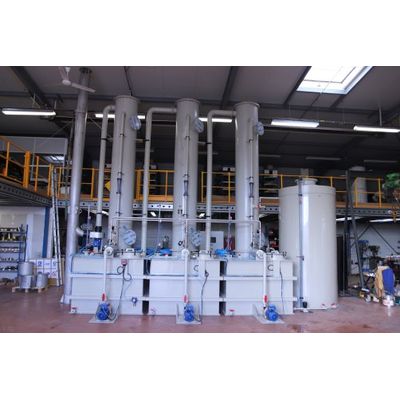

Model Scrubber -Gas Treatment System

The Scrubber aim is to solubilize ETO gas into an acid washer. A reactor and a washing tower allow the ETO transformation to Ethylene glycol thanks to perfect condition of temperature and acidity. The washing tower is here to allow gases to be in contact with water to be absorbed. A water pump push water from the reactor to the top of the tower. EtO comes from the bottom of the tower to the top. Contact time is an important factor of efficiency. The chemical reactor, placed under the washing column, is there to allow the chemical reaction and store Ethylene glycol created.
