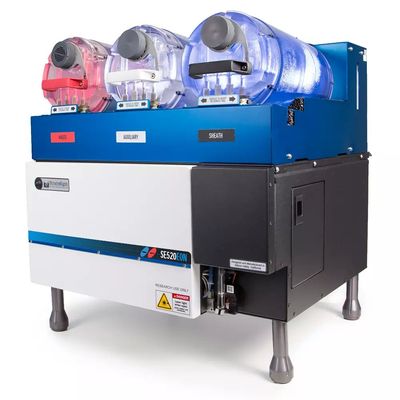

Model SE520EON -Flow Cytometer
FromStratedigm Inc.
We know that people demand performance and reliability from their flow cytometers, even for standard applications. But uncompromised performance simply would not be achievable at a lower price point with conventional entry-level systems. So we designed our SE520EON benchtop flow cytometer with the same patented technologies as our S1000 series—without the same price tag. Our SE520EON may be a small flow cytometer, but it’s big on performance.
Most popular related searches
flow cytometer
benchtop flow cytometer
cytometer
decontamination procedure
particle sizing
waste drainage
waste operator
fluorescence standard
decontamination
scattering analysis
- Fixed configuration with 2 lasers (488 nm and 640 nm) and 6 colors
- Based on the same performance and patented technology as the S1000EON
- Complete compatibility with Stratedigm’s full automation suite
Laser:
- System is designed to support 2 lasers with spatial separation
- Laser options:
- Solid-state 488 nm – 150 mW
- Solid-state 640 nm – 100 mW
Detector Parameters & Data Acquisition:
- Dynamic Range:
- 5 decades for acquisition
- 7 decades for analysis
- Forward scatter (FSC) – enables separation of unfixed platelets from noise
- FSC resolution: < 500 nm polystyrene beads
- FSC scales: log & linear
- FSC: parameters: width, peak-height; area
- Optional FSC photomultiplier (PMT) detector
- Side scatter (SSC)- resolves lympho-, mono- , and granulocytes
- SSC resolution: < 200 nm polystyrene beads
- SSC scales: log & linear
- SCC parameters: width, peak-height, area
- Fluorescence channels:
- Standard number of colors: 6
- Sensitivity: < 100 MESF
- PMT scales: log & linear
- PMT parameters: width, peak-height, area
- Time: 13 µsec resolution
Analysis Rate & Carryover
- Analysis rate: 20,000 events/ sec
- Carryover: < 0.1% automatic backlash between samples
- Dead volume: < 8 μL
- Minimum sample volume: < 20 μL
- Maximum particle size: 40 μm
- Patented low insertion force single tube loading
Fluidics Tray:
- Integrated fluidics tray does not increase the footprint of the instrument
- Automated startup, shutdown, and cleaning cycles
- Automated decontamination procedure using onboard cleaning solution for all components in contact with sample
- Tank Capacity: 4 L sheath, 4 L waste, 4 L auxiliary solution
- Optional automated sheath tank fill and waste drainage
Operating Conditions:
- Operating Conditions: 60-86 °F (15-30 °C)
- Size (including fluidics tray): 21.5″ W x 21″ D x 24″ H (54.6 cm W x 53.3 cm D x 61 cm H)
- Weight (including fluidics tray): < 70 lbs (35 kg)
- Power: 110/115/230 VAC, 50-60 Hz
