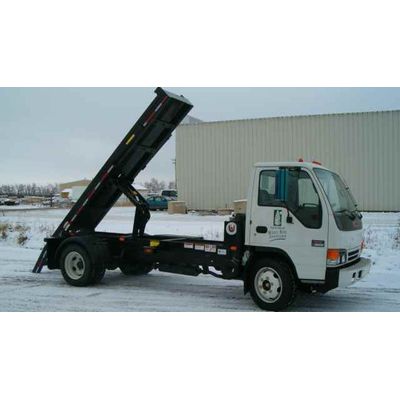

Model Series 1000 - Mini Hoist -Cable Roll off Hoists
Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 1000 is a small hoist design made for light/medium duty single axle trucks, ideal for small residential applications.
Most popular related searches
GENERAL SPECIFICATIONS
- Nominal length: 16`
- Bed length: Suitable for 12-16 foot length skid containers
- Capacity: 10,000 lbs
- Scissor Lift Tilt Cylinders: 5 " bore
- Telescopic Hoist Cylinders: 3 stage 5 1/2 " to 3 1/2 "
- Cable length: 5/8 " x 175 " long
- Operating Pressure: 2000 psi
- Sub Frame Mounted Hydraulic Tank: 15.5 gal. capacity
- Bed Construction: 6 " x 4 " tubing
- Fenders and Toolbox: Steel
- Tipping Angle: 45 degrees
HYDRAULIC SYSTEM
- Hydraulic System designed for ISO 16/13 standard
- PUMP AND PTO
- Pump and PTO to suit chassis
PAINTING
- Black Urethane Paint
- Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
BIN SIZES
- Drop In Stops to accomodate various length bins
BODY OPTIONS
- Additional LED Work Lights
- Back-Up cameras
- Pintle plate and hook
- Variety of tarp systems available
FENDERS AND TOOLBOX
- Steel checkered plate
- Aluminum checkered plate
- Plastic
PAINTING
- Custom colours available upon request
