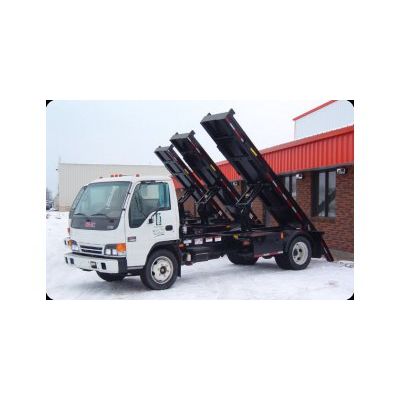

Model Series 1000 -Roll-Off Mini Hoists
Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 1000 Hoist is a scissor lift design ideal for residential areas. Its product features include:
Most popular related searches
- Compact scissor lift design
- All sealed beam rubber mounted lights
- Bed mounted rear underride (ICC) bumper
- Front and rear container stops
- Electric in-cab controls
- Outside mechanical controls
- Mid-body turn signals
- Bed props
- Plastic fender construction
- Bed-up indicator
- Nominal length16 `
- Bed length Suitable for 12 foot length skid containers
- Capacity10,000 lbs
- Scissor Lift Tilt Cylinders5 " bore
- Telescopic Hoist Cylinders3 stage 5 1/2 " to 3 1/2 "
- Cable length5/8 " x 175 " long
- Operating Pressure2000 psi
- Sub Frame Mounted Hydraulic Tank15.5 gal. capacity
- Bed Construction6 " x 4 " tubing
- Tipping Angle46 degrees
- Hydraulic System designed for ISO 16/13 standard
- Pump to suit chassis
