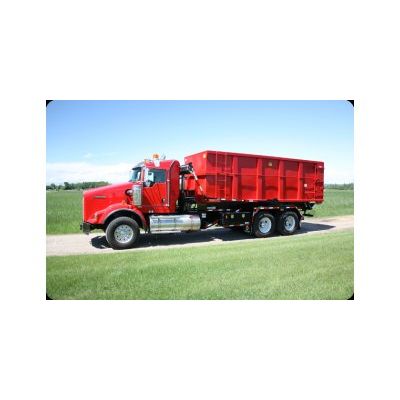

Model Series 3000 -Bale System
Universal Handling Equipment Roll-Off Hoists provide the perfect combination of strength and durability in the marketplace today. The Series 3000 Hoist is a heavy duty bale style hoist that ratchets the container onto the rails. Its product features include:
- Single rod cylinder bale style hoist
- Pneumatic in-cab controls and outside manual controls
- Mid-body turn signals for greater safety
- All single stage cylinders manufacturered in house
- Two lifting capacities (50,000, or 60,000 lbs)
- Bed-mounted rear under-ride ICC bumper
- 2,000 PSI operating pressure
- Premium coded wiring with junction boxes eliminated
Bale size 2 7/8 "
Hoist frame Structural channel
Top rail wear strip 3/8 " flat bar
Inside rail width 34"
Operating pressure 2,000 PSI
Oil tank capacity 50 US gallon (190 L)
Oil pump specifications 40 gpm @ 1,000 rpm (front mount)
Control valve Sectional High Flow Air Actuated
Single stage tilt cylinders 6 " or 7 " bore x 4 " rod
Single stage hoist cylinder 6" bore x 4" rod
Hoses SAE 100R12 with abrasion resistant cover
TruckLite lifetime LED Super 44 lighting
Premium coded wiring with junction boxes eliminated
Proximity sensors - bed up sensor
