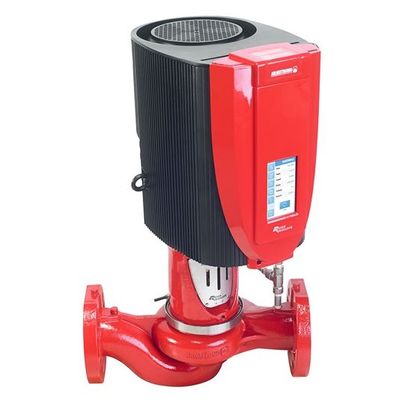

Model Series 4300 -Split Coupled Vertical In-Line Pump

SHARE

Pipe-mounted UL 778 pumping unit with integrated intelligent controls for space-saving installation and superior energy performance. Saves up to 75% in energy over comparable traditional constant speed or variable frequency operated pump installations. Remote services through internet to enhance reliability and sustain optimal performance over life of pumps.

Most popular related searches
vertical inline pump
differential pressure sensor
variable frequency drive
inline pump
HVAC system
pump system
process pump
pump controller
pressure sensor
industrial pump
  • Applications : HVAC-system pumping and control; general purpose pumping; industrial/process pumping and control (water or glycol based)
  • Materials
  • Ductile iron e-coated casing
  • Stainless steel impeller
  • Sintered silicon carbide mechanical seal
  • Configuration : On-board Intelligent Variable Speed controls with Sensorless control. Split-coupling design and outside balanced or inside single spring mechanical seal. Controls enclosure UL type 12 or UL type 4X for outdoor applications. 1-10hp range standard with iECM motors that reduce losses by more than 20% over NEMA Premium efficiency. Network capable for remote performance management services.
  • Performance range : 25 to 25,000 USgpm (1.5 to 1500 L/s) flow; 10 to 300 ft (3 to 90 m) head (composite curves available)
  • Temperature : 300oF (150oC)
  • Power Range ; 1 hp to 1250 hp (0.75 kW to 900 kW)
  • Size : 1.5" to 20” (40 mm to 500 mm)
  • Vertical In-line design eliminates the need for inertia bases, housekeeping pads, and flex connectors and reduces piping requirements
  • Integrated intelligent controls eliminate separate mounting of variable frequency drive (VFD) as well as procurement, installation (incl. wiring), calibration and upkeep of differential pressure sensor
  • Vertical motor positioning requires up to 60% less floor space compared to other pump configurations.
  • Expertly staggered product line for perfect pump match-up and selection especially in retrofit situations
  • Superior energy performance qualifies for significant cost recovery under utility and government rebate programs
  • Design Envelope selections frequently recommend a smaller motor and/or pump which reduces installed cost.
