Model SGD -Seismic Equipment
FromZond Software
Seismic station SGD-SEL for profile survey. Seismic station SGD-SEL is designed for engineering geophysical investigations.
Most popular related searches
seismic system
seismic
geophysics monitoring
seismic exploration
seismic geophysics
geophysics engineering
seismic monitoring
seismic refraction
geophysics
seismic profiling
Technical parameters:
- The number of registration channels: 48 or 24
- The noise level of registration channel: 0.15 mkW
- Instantaneous dynamic range signal: 105 dB
- The mutual influences between registeringchannels: no more 110 dB
- Rejection ratio input common-mode signal: no less 80 dB
- Sample raw registered signal: 2, 1, 0.5, 0.25, 0.125 ms
- Sizes: 340x295x152 mm
- Weight: 6 or 4 kg

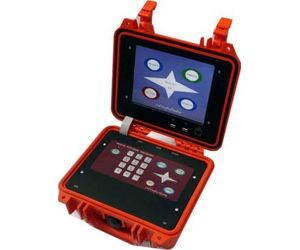

Seismic station SGD- TEL is designed for seismology exploration by refracted waves, reflected waves, common-midpoint methods.
Technical parameters:
- The number of registration channels: up to 960
- Computer Tion-270 (processor Marwell PXA270/520
- MHz, SDRAM 128 MB, FLASH 32 MB)
- Operating system; LINUX Kernel 2.4 or 2.6.
- color display 8.4″ SVGA type TFL NEC
- NL8060BC21-06 (800·600)
- Temperature range: -20…+60 C
- Time of continious work without recharging the
- battery at least S hours
- Sizes: 270x246x124 mm
- Weight: no more 7 kg
