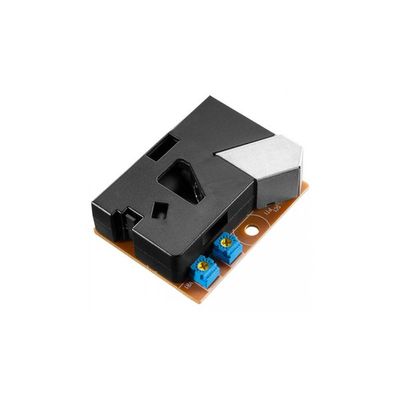

Model SHOP STBM-271 -Sensor Module for Particle and Dust Measurement

FromBB Thermo-Technik GmbH

SHARE

Through a light scattering method the highly sensitive optical sensor detects particles of smoke, dust, cigarette smoke, pollen as well as house dust pores and mite dust in ambient air starting at a particle dimension of 1 µm. The dust detector can be easily integrated into control unit devices such as ventilation systems.

Most popular related searches

dust monitoring

particulate matter

air purification

air conditioner

This innovative sensor detects dust, particulate matter and pollen in the ambient air by scattering of light. The particulate matter sensor can be easily integrated into any actuators or control units.

Weight: 0.034 kg

Areas of application include:

Air purifiers
Air-analysis and control systems
air conditioners, ventilators & fans
smoke exhaust emissions
smoking lounges

B+B Thermo-Technik engineers and produces innovative measurement technologies. You are in need of individual measurement solutions? Just contact our sales team right away!

Article name: Sensor module for dust detection
Measuring principle: Light scattering method
Measuring range: Particles with dimension > 1 µm, 0...60.000 particles/1000cm³
Output signal: Pulse width modulation
Application temperature: -10...+65 °C
Operating humidity range: < 95 % RH
Dimensions: (LxWxH) 59x 45x 20 mm
Connection: 2 mm pitch connector type (GIL-S-5P-S2L2-EF)
Stabilization time: One minute after power on
Power consumption: 90 mA
Supply voltage: 5 V DC±10 %
Measuring medium: Ambient air, smoke, dust, mite dust, cigarette smoke, pollen, pores and other allergenes
Weight: 0.034 kg
