Model SHP -Slim Hole Piston Pump for Contaminant Recovery
Oak Environmental`s SHP (slim hole piston) pump is specially designed to meet the demands of sub-surface contaminant and contaminated groundwater extraction projects. The combination of rapid setup and low maintenance ensures efficient containment and recovery of sub-surface plumes. The SHP pump is cost effective with a proven track record on sites with chemical, oil, or gasoline spills.
Most popular related searches
piston pump
contaminated groundwater
reciprocating pump
stainless steel pipe
groundwater table
remediation system
recovery well
surface contamination
hazardous area
pump system
- Containment of contaminant by depression of the groundwater table
- Removal of contaminant or contaminated groundwater from the sub-surface
- No need to drill extra recovery wells - existing 50 mm (2 in) diameter well casings can be used
- Maintains high pumping efficiency for extended durations
- Low maintenance requirements
- Self-contained and portable
- Continuous operation from zero to 100 per cent of maximum design flow (pump is not damaged even if borehole runs dry)
The SHP Pump Installed
- Pump type: reciprocating/positive displacement (42 strokes/min)
- Maximum pumping depth: 35 m (115 ft)

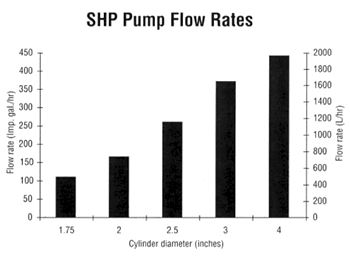

- Flow rate(s): 0 to 2000 L/hr (0 to 400 gal/hr) depending on well size
- Motor: standard 3/4 HP, 120 V, 8 A, single phase (other options available)
CSA-approved for most hazardous locations.
- Reciprocating pump unit complete with motor
- Pump cylinder
- Portable dolly
- Baked enamel-painted metal enclosure
- 15 m (50 ft) downhold steel pipe and rod complete with couplings
- 15 m (50 ft) discharge hose
- 6 m (20 ft) power cord
- Manual electrical disconnect
