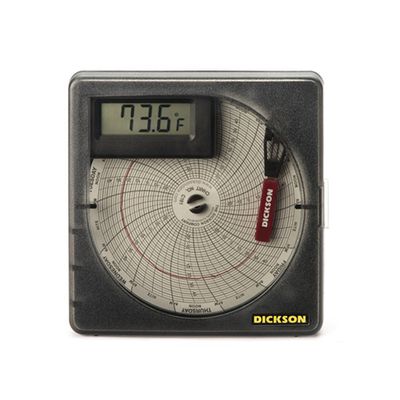

Model SL4 -4 inch Temperature Chart Recorder
A great size coupled with 2-3 year battery life makes this 4-inch (101mm) temperature chart recorder a great solution for refrigerators, freezers and HVAC applications. Digital Display, 7-Day or 24-Hour recording, F/C Switchable, 2-3 Year Battery Life
Ambient Operating RH Conditions: 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -22.0 to 122.0F (-30.0 to 50.0C)
Approvals: CE
Battery Life (Avg): 3 Years
Calibration Options: N100, N300, N400
Channels: CH1: Temperature
Chart Rotation Speed: 24 Hour or 7 Day
Dimensions: 2.4 x 5.2 x 5.2in
Display Accuracy: 1.8F
Display Dimensions: 1.8 x 0.36in
Display Resolution: 0.1
Display Type: LCD
Enclosure: Black ABS and Polycarbonate
Included Accessories: "One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately"
IP Rating: 21
Mounting Options: Free Standing or Wall Mounted
Power Source: Battery; One AA Battery (User Replaceable)
Response Time: 11 Minutes to 63% of Full Scale (in air moving 5` per second)
Temperature Accuracy: ± 2% Of Full Scale
Temperature Range: SL4350: -22.0 to 122.0F (-30.0 to 50.0C) SL4100: 0.0 to 100.0F (-18.0 to 37.0C)
Temperature Sensor Type: Precise spiral wound bi-metallic strip transducer
Unit Weight: 3 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
