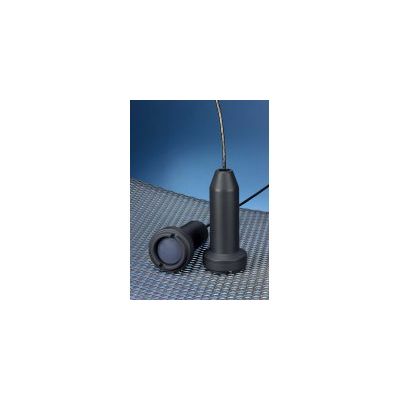

Model SLX 130 -Submersible Level Transducer

The SLX 130 has a 3.8" diameter (max.) PVC housing and a 2.5" diaphragm.  The housing is suited for use in chemically aggressive applications.  The plastic housing also provides excellent electrical isolation from surges which are typically encountered due to lightning.

SLX 130 is available in either of two outputs: 1) The SLX 130-M provides an industry standard, loop-powered 4-20 mADC output 2) the SLX 130-E is a three wire transducer with 5 VDC excitation and a 0.5-4.5 VDC ratiometric output (nominal).

The SLX 130-M and SLX 130-MIS (milliAmp Intrinsically Safe) is a two-wire loop-powered device that provides a 4-20 mADC output over the sensor`s pressure range.  The SLX 130-M is available in standard ranges of 5, 10, 15 and 30 PSI.  The SLX 130-E is available in standard ranges of 5, 15 and 30 PSI.  The SLX 130-E can be combined with Contegra`s T423 or T425 to provide a calibrated 4-20 mADC output over the customer`s specified range (e.g. 4-20 mADC over 0-18` excursion).

The SLX 130-M has a 9.5 VDC lift-off voltage (nominal) and operates on a supply voltage of up to 28VDC.

The SLX 130 ’s sensor has a 0.25% typical accuracy.  The SLX 130 is pendent mounted (i.e. suspended) via its Kevlar®-strengthened signal cable.  Thus, the SLX 130 is appropriate for applications with low to moderate turbulence.  [Applications with high turbulence may benefit from the SLX 130’s ability to be pipe mounted.]

Types of Signal Cable:

The SLX 130-M is available with either a Ropellant™ jacketed cable made of TPE (Thermoplastic elastomer) or as Teflon(R) jacketed cable.  The SLX 130-E is available with the Teflon(R) jacketed cable.  The Ropellant™ jacketed cable is specially formulated with an integral rodent repellent.
