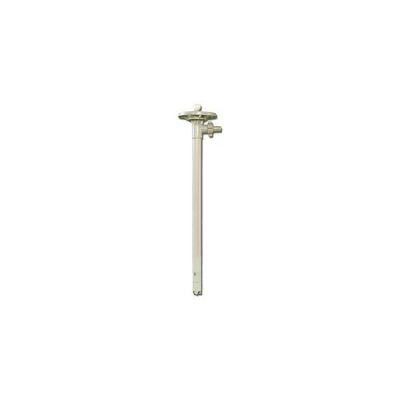

Model SP-PHT Series -High Temperature Polypropylene Pump Tubes
Engineered for transferring high temperature corrosive liquids. Robust Polypropylene ensures chemical resistance and excellent heat deflection properties against light to mildly aggressive chemicals.
Most popular related searches
Hastelloy C 276
pump tubing
ferric chloride
drum pump
corrosive liquid
aggressive chemicals pump
industrial pump
chemical pump
tube pump
centrifuge
- Acetic Acid
- Alkalis
- Sulfuric Acid
- Nitric Acid (20%)
- Hydrochloric (20%)
- Ferric Chloride
- Pump Design : Sealless / Centrifugal
- Discharge :
- 1" (25,4 mm) Hose Barb
- *¾" (19 mm) Hose Barb available upon request
- Wetted Materials: : Polypropylene, PTFE, Carbon Graphite, Hastelloy C-276
- Motor Drive Options: : 110V & 220V Single Phase, Pneumatic
- Maximum Viscosity: (based on motor option)
- SP-280P & SP-ENC : 1500 cps (mPas)
- SP-A2 : 750 cps (mPas)
- SP-A1 : 450 cps (mPas)
- Maximum Discharge Pressure
- SP-PP : 16 psi (1,1 bar)
- SP-PP-HH : 32 psi (2,2 bar)
- Maximum Flow Rate (based on water)
- SP-PP : 35 gpm (132 lpm)
- SP-PP-HH : 16 gpm (60 lpm)
- Maximum Specific Gravity : 1.8*
- Maximum Temperature : 130° F (55° C)
- Available Immersion Lengths
- 27" (700 mm), 39" (1000 mm), 47" (1200 mm),
- 50" (1270 MM), 60" (1500 mm), 72" 1800 mm)
- *Additional lengths available upon request
