Model STX 4000 -Terminal for Vehicle Weighing Systems
The STX 4000 self-service terminal, equipped with an LCD display, RFID card reader and alphanumeric keypad. In the cover protecting the keypad there are LED lights for the sake of works performed at night. The STX 4000 terminal is able to print out weighing tickets and control external devices (traffic lights, traffic gates, etc.).
- The LCD displays (4 lines, 20 characters each) showing messages for a driver
- Alphanumeric keypad
- RFID reader
- 255-entry memory (e.g. products)
- Printer with roll paper and an anti-dust cover
- 2 digital inputs, 2 digital outputs to control external devices (e.g. traffic lights, traffic gates)
- Serial port allowing to connect an additional device (e.g. a weighing device, LED display)
- The LED lights, mounted in the cover above the keypad, for the purpose of the overnight work
- Metal casing, powder-coated, the coat type is suitable for external use, the colour - RAL5015
Weighing System With STX 4000
The system includes:
- 2x STX 4000 terminal
- GSW Automat software
- 1x Desktop RFID card reader
- 25 x RFID cards
Weighing Operation Schedule

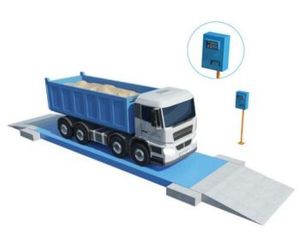

- A vehicle enters the weighbridge.
- If the driver has got the RFID card, he holds it in front of the terminal. If it is his first visit in the plant, the driver goes to the customer service centre in order to register the vehicle in the system.
- The system identifies the business partner on the basis of the RFID card. Upon the correct identification of the card by the system, the display shows: the vehicle registration plate number, the name of the company to which the card is assigned and the weighed product. The driver is allowed to select the weighed product. The driver can scroll the products by means of up/down buttons or enter the product code.
- As soon as the driver accepts the entered data, the weighing process begins.
- Upon stabilisation, the weighing result is saved in the database. The driver sees a message confirming the completion of the weighing operation, displayed on the display.
- Upon completion of the weighing operation, a printer installed in the terminal prints out a weighing ticket. When the vehicle leaves the weighbridge, the system is ready to perform another weighing operation.
In case of double weighing operations (enter/exit), the system detects by itself the performance of the first weighing operation and automatically calculates the net weight of the cargo.
The terminal consists of a metal casing of the following dimensions: 600x400x250 mm, painted in the RAL5015 colour. It is possible to buy the terminal in the stainless steel casing. The customer can extend the basic terminal version by purchasing additional elements of the equipment, such as: the industrial printer with paper cutter or the IP intercom.
- Led Lights Mounted in the Cover Over the Keypad
- LCD Display
- Alphanumeric Keypad
- The RFID Card Reader
- Industrial Printer With Paper Cutter
- Metal Casing, Powder-Coated, the Coat Suitable for External Use, the RAL5015 Colour (Shown in the Picture)

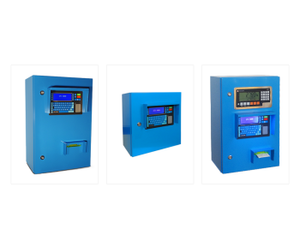

The STX 4000 terminal is available in different variants. The terminal can have one of the following casings:
- STX 4000 dimensions 600x400x250
- STX 4000M dimensions 400x400x250
- Special casing, e.g. with an opening for the weighing indicator (Rinstrum)
Category: Parameter
Communication Interface:
- Type of communication interface: RS 232/485, Ethernet (using a converter)
- Galvanic isolation of the communication port: Yes (1 kV)
- Serial port for printer control: Yes
- Led illumination allowing to work at night: Yes
- Number of digital inputs: 2
- Number of digital outputs: 2
- Timer outputs: No
- Display: LCD, 4 lines of text, 20 characters in a line
- Display character height: 1 cm
- Database with a search engine: Yes
- Maximum number of items in the database: 255
Characteristic:
- Housing material: Powder-coated black steel, colour: RAL 5015 paint for outdoor use / *stainless steel - optional
- Dimensions of the box housing: 600x400x250 mm
- Number of cable glands: 6
- Cable glands material: Nickel-plated brass
- Cable gland for cable diameters: up to 12 mm
- Keypad type: Membrane
- Integrated RFID reader: Yes
- Type of RFID transponders read: UNIQUE 125 kHz
- Transponders’ effective reading distance: A few centimeters
- External power supply: 12~24 VDC
Environmental Limits and Conformity to Standards:
- Storage temperature: from -30 to +70 C
- Operating temperature: from -20 to +60 C
- Relative humidity: < 95% without condensation
- Electromagnetic compatibility: CE
Possibility of Transmission Protocol:
- Displaying any texts on the screen (Latin alphabet)
- Downloading texts entered on the keypad
- Uploading data dictionaries to the memory
- RFID transponder number reading
- Digital inputs status reading:
- Digital inputs status reading
- Device status reading
- Setting the device number (for network operation)
- Control of an additional serial port (for a printer)
