Model STX 5000 -Self-Service Terminal for Drivers

SHARE

The clear TFT display, very bright, allowing to use the terminal freely, even in the direct sun. Alphanumeric keypad with large buttons. Integrated RFID reader. Printer with roll paper and an anti-dust cover. IP intercom with HD-quality sound and active background noise dampening module. Memory of up to 2,000 products or other data (e.g. drivers). Incremental browser. 4 digital inputs, 4 digital outputs to control external devices (e.g. traffic lights, traffic gates). 2 serial ports allowing to connect an additional device (e.g. LED display, barcode reader). The LED lights, mounted in the cover above the keypad, to work at night. Metal casing, powder-coated, the coat type is suitable for external use, the colour - RAL5015.

Most popular related searches
weighing system
vehicle weighing system
dust cover
metal coating
vehicle weighbridge
process weighing
weighbridge
metal dust
  • The clear TFT display, very bright, allowing to use the terminal freely, even in the direct sun
  • Alphanumeric keypad with large buttons
  • Integrated RFID reader
  • Printer with roll paper and an anti-dust cover
  • IP intercom with HD-quality sound and active background noise dampening module
  • Memory of up to 2,000 products or other data (e.g. drivers)
  • Incremental browser
  • 4 digital inputs, 4 digital outputs to control external devices (e.g. traffic lights, traffic gates)
  • 2 serial ports allowing to connect an additional device (e.g. LED display, barcode reader)
  • The LED lights, mounted in the cover above the keypad, to work at night
  • Metal casing, powder-coated, the coat type is suitable for external use, the colour - RAL5015

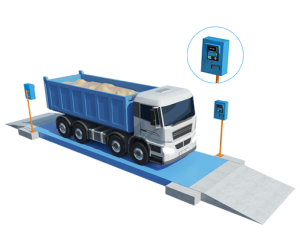

Weighing System With the STX 5000

The system includes:

  • 2 x STX 5000 terminals
  • GSW Automat software
  • RFID cards

Weighing Operation Schedule

  1. A vehicle enters the weighbridge.
  2. A driver holds the card in front of the terminal. The display shows the data assigned to the RFID card. The driver can change the data, e.g. change the weighted product.
  3. Upon approval of the entered data, the weighing process begins.
  4. Upon the weight stabilisation, the weighing process data is recorded in the database, then the display shows a message confirming that the weighing operation has been performed and the weighing ticket is printed. When the ticket is collected, the vehicle leaves the weighbridge.

In case of double weighing operations (enter/exit), the system detects by itself the performance of the first weighing operation and automatically calculates the net weight of the cargo.

The terminal consists of a metal casing of the following dimensions: 600x400x250 mm, painted in the RAL5015 colour. It is possible to buy the terminal in the stainless steel casing. The customer can extend the basic terminal version by purchasing additional elements of the equipment, such as: the industrial printer with paper cutter or the IP intercom.

  1. Led lights to be mounted in the cover above the keypad
  2. Clear TFT display
  3. Alphanumeric keypad with large buttons
  4. RFID card reader
  5. Intercom with HD-quality sound
  6. Industrial printer with a paper cutter and anti-dust cap
  7. Metal casing, powder-coated, the coat is suitable for external use, the colour - ral5015 (shown in the picture)

Category: Parameter

Communication Interface:

  • Type of communication interface: RS 232/485, Ethernet (using a converter)
  • Galvanic isolation of the communication port: Yes (1 kV)
  • Serial port for printer control: Yes
  • Additional serial port (e.g. for a barcode reader: Yes
  • Led illumination allowing to work at night: Yes
  • Number of digital inputs: 4
  • Number of digital outputs: 4
  • Timer outputs: Yes
  • Display: TFT high-brightness
  • UNICODE character support: Yes
  • Display character height: from 5 to 60 mm
  • Database with a search engine: Yes
  • Maximum number of items in the database: 2000
  • Searching the database by using numbers (e.g. product number): Yes
  • Incremental search engine (search by a name part): Yes

Characteristic:

  • Housing material: Powder-coated black steel, colour: RAL 5015 paint for outdoor use *stainless steel - optional
  • Dimensions of the box housing: 600/400/250 mm
  • Number of cable glands: 6
  • Cable glands material: Nickel-plated brass
  • Cable gland for cable diameters: up to 12 mm
  • Keypad type: Membrane
  • Integrated RFID reader: Yes
  • Type of RFID transponders read: UNIQUE 125 kHz
  • Transponders’ effective reading distance: A few centimeters
  • External power supply: 12~24 VDC

Environmental Limits and Conformity to Standards:

  • Storage temperature: from -30 to +70 C
  • Operating temperature: from -20 to +60 C
  • Relative humidity: < 95% without condensation
  • Electromagnetic compatibility: CE

Possibility of Transmission Protocol:

  1. Displaying any texts on the screen (Unicode)
  2. Downloading texts entered on the keypad:
  3. Bitmap displaying:
  4. Uploading data dictionaries to the memory
  5. RFID transponder number reading e.g. to support an external display, a printer, barcode reader
  6. Digital inputs status reading:
  7. Digital output control
  8. Device status reading
  9. Setting the device number (for network operation)
  10. Audio level setting
  11. Font style and size setting
  12. Control of additional serial ports
