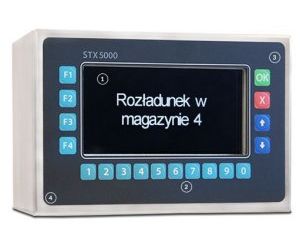

Model STX 5000C -Mobile Terminal for Forklifts and Loaders
The STX 5000C mobile terminal is equipped with a clear TFT display of very high brightness enabling operation even in harsh sunlight. The numeric keypad mounted on the terminal has large buttons facilitating user operation. The STX 5000C terminal can be mounted on forklifts and loaders.
Most popular related searches
- Clear, high-brightness display that allows you to use the terminal even in bright sunlight
- Membrane keypad
- 4 digital inputs and 4 digital outputs for external devices’ control
- TCP/IP or RS232/RS485 wireless communication
- 5 mm security glass
- Industrial cable connectors
- Stainless steel housing
System with the STX 5000C Terminal was installed by us, among others in the Cement Plant Ozarow. A detailed description of the system can be found by clicking the button below.
- Clear TFT monochromatic display of very high brightness (enabling operation even in harsh sunlight) secured with 5mm thick glass
- Membrane keypad (easy operation even while wearing gloves)
- Wireless communication module
- Robust housing made of stainless steel
Category: Parameter
Communication Interface:
- Type of communication interface: RS 232, RS 485, Ethernet
- Galvanic isolation of the communication port: Yes (1 kV)
- Number of digital inputs: 4
- Number of digital outputs: 4
- Timer outputs: Yes
- Display: TFT high-brightness
- UNICODE character support: Yes
- Display character height: From 5 to 60 mm
Characteristic:
- Housing material: Stainless steel
- Dimensions of the housing: 225/150/100 mm
- Keypad type: Membrane
- External power supply: 12~24 VDC
- Holder for mounting on a forklift: Yes
Environmental Limits and Conformity To Standards:
- Storage temperature: From -30 to +70 C
- Operating temperature: From -20 to +60 C
- Relative humidity: < 95% without condensation
- Electromagnetic compatibility: CE
