Model STX 5000T -Self-Service Terminal for Drivers With Touch Screen
The self-service terminal STX 5000T is equipped with a high-resolution industrial touch screen. The STX 5000T terminal can be equipped with an industrial weight ticket printer and an industrial qr or barcode reader. The terminal has a housing made of brushed stainless steel.
Most popular related searches
weighing system
vehicle weighing system
industrial screening
weighing terminal
digital temperature controller
industrial fan
process weighing
blower
- Stainless steel housing
- High brightness industrial touch screen for operation in bright sunlight
- Industrial computer to control the terminal’s operation
- Terminal inside temperature control system
- The terminal can additionally be equipped with an industrial weighing ticket printer, RFID/NFC card reader, barcode /QR reader, electronic signature pad, IP intercoma

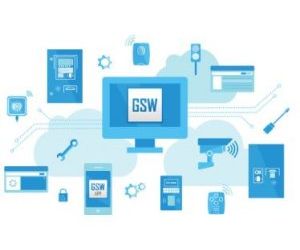

Weighing System Supporting STX 5000T Terminal
The system consists of:
- 1x GSW Software
- 1x STX 5000T Terminal

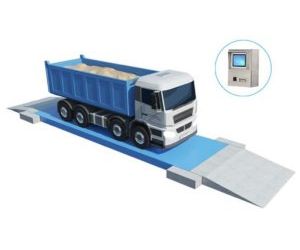

Weighing Scheme
- The vehicle enters the scale.
- On the terminal screen, the driver enters the licence plate number, selects the contracting party and the product.
- Once the data have been validated, the weighing process begins.
- After the mass value has stabilized, the weighing is saved in the database. The terminal display shows a message confirming the weighing and a weighing ticket is printed. After the weighing ticket has been collected, the vehicle leaves the scale.
In the case of double weighing (entry/exit), the system detects the first weighing operation and calculates the net weight automatically.
- computer software for the logistics department used for the weighing notifications with a web platform for customers
- connection to superior systems (SAP, Axapta, Navision, etc.)
- license plate numbers’ automatic recognition system
- control of barriers and road signalling devices
- vehicle queuing system in the car park (LED boards, SMS notifications, mobile application for drivers)
- additional logic of the terminal operation, including e.g. multimedia OHS training for drivers coming to a given company for the first time
- Industrial touch screen with high brightness
- Protective roof
- Barcode /QR reader
- Industrial weighing ticket printer
- Housing Made of Brushed Stainless Steel of 800X600X300 MM
Category: Parameter
Technical Description:
- Panel size: 15”
- Active display area (mm): 304.1 (H) x 228.1 (V)
- Resolution: 1028 x 768
- Brightness: 1000 cd/m2
- Contrast ratio: 700:1
- Viewing angle: -80~80 (H); -70~70 (V)
- Number of colors: 16.2 (6 bits/color)
- Optional touch screen: Projected capacitive multi-touch
Power Information:
- Power source: 12 V DC in, with external AC-DC adapter (100~240V)
- Power consumption: 25 W typical, normal operation
Operating Environment:
- Storage temperature: From -10 to +60 C
- Operating temperature: From 0 to +50 C
General Information:
- Housing material: Stainless steel
- Dimensions of the terminal: 800x600x300 mm
- Number of cable glands: From 1 to 12
- Cable glands material: Nickel-plated brass or polyamide
Accessories:
- Industrial printer: Option
- Barcode reader: Option
- IP intercom: Option
- Thermoelectric cooling (Peltier device): Option
- Heating: 100W heater (with blower)
- Cooling: Using a fan
- Industrial computer: Yes
