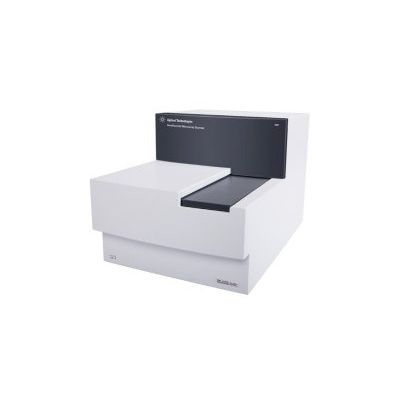

Model SureScan Dx -Microarray Scanner
The new Agilent SureScan Dx Microarray Scanner is CE marked for in vitro diagnostic use in the Europe Union, Iceland, Korea, Norway, Singapore, and Switzerland. The SureScan Dx is the foundation of our complete microarray solution that offers outstanding sensitivity and resolution, delivering flexibility to analyze genomics and cytogenetics microarrays. The small footprint of the SureScan Dx Microarray Scanner allows lab space to be optimized while improving the sensitivity and maintaining the broadest dynamic range (XDR).
- Interpret results easily with quality data and crisp images from high resolution scans
- Streamline your workflow with continuous slide loading capability to remove
- Built-in ozone protection minimizes signal degradation
- Manufactured under ISO 13485 certifications
CE-IVD Marked: The SureScan Dx Microarray Scanner is CE- marked
Dynamic Range: >104 (16-bit data format), >105 (20-bit data format), >106 (with XDR scanning)
Dynamic AutoFocus: Continually adjusts scanner`s focus, keeping features in focus at all times
Resolution: 2, 3, 5, and 10 microns
Autoloader: 24-slide cassette allows for hands-off operation
Integrated Barcode Reader: Reads code 128 (A,B,C), Code 39, Code 93, and CODABAR
Compatible Dyes: Cyanine 3 and Cyanine 5, and Alexa 647, 555, and 660
Laser Information: Green solid-state laser, 532 nm; red solid-state laser, 640 nm, Power: 20 mW at 532 nm and 640 nm both controlled to 13 mW
Scan Window Maximum: 71 mm x 21.6 mm
PMT Adjustment: Automatic PMT gain calibration before each run, Allows adjustment of signal levels from 100% (default) to 1%
Detection Limit: 0.01 chromophores per square micron
Pixel Placement Error: 1 pixel @ 5 micron resolution
Glass Dimensions Supported: 1 x 3" (25 mm x 75 mm) glass slide, Width: 24.95 mm to 26.1 mm, Length: 74.8 mm to 76.45 mm, Thickness: 0.9 mm to 1.1mm, Non-Mirrored slides of low intrinsic fluorescence
Scan time: Two-color simultaneous data acquisition in 16 minutes per for 3-micron scans and 24 minutes for 2-micron scans (scan region of 61 mm x 21.6 mm)
Data Workstation and Operating System: PC-based with Windows® 7 – 64 bit
Approximate Scanner Dimensions: Height: 16.5” (42 cm), Width: 17” (43 cm); Depth: 26” (67 cm)
Weight: Scanner: 125 lbs (56.8 kg)
Power Input: 100 – 240 VAC, 50 - 60 Hz, 250 VA max.
Fuses: Two power supply fuses: T4A, 250 VAC
Humidity: Operating: 15% to 85% RH at 30°C
Altitude: Operating maximum: 2,300 m (7,500 ft)
Operating Temperature Range: 15°C to 30°C
Laser Product Classification: Class 1
