Model SY03B -Syringe Pump

SHARE

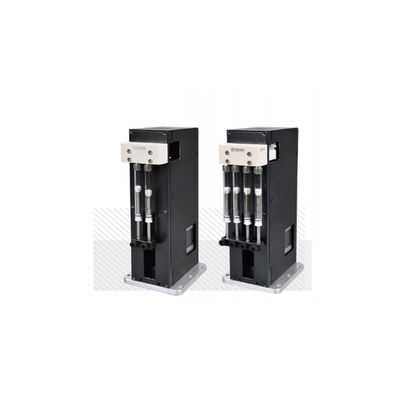

SY-03B Dk series product is a kind of micro-syringe pump with multiple syringes working in parallel in high precision developed by Runze Fluid. Use a stepper motor to drive the syringe and the valve to aspirate and dispense quantitative liquid. The syringe is replaceable. It is a fully programmable pump module with the open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. It can be controlled by an external computer or microprocessor, and with functions in automatic pipetting, dilution and dispensing.


Most popular related searches
syringe pump
hybrid stepper motor
borosilicate glass
automatic pipetting
solenoid valve
industrial pump
pipetting
fluid handling
screw actuator
replacement syringe

  • Syringe sizes ranging from 25μL to 5ml

  • RS232/RS485 interface

  • Plunger speeds from 0.1rpm to 500rpm

  • Programmable acceleration-deceleration curve

  • Programmable backlash compensation

  • Lost-step detection

  • Off-line automatic operation

  • Error diagnosis

ccuracy ≤1%@100% stroke
Precision (Repeatability) 0.3%~0.5%@100% stroke
Rated stroke (control steps) 60mm(6000 steps standard mode; 48000 steps micro-step mode)
RPM Range 0.1rpm ~ 900rpm
Linear speed 0.01mm/s ~ 100mm/s(media: water ; 1 rated stroke=one time)
Running time (per rated stroke) 1.8s ~ 6000s(media: water ; 1 rated stroke=one time)
Resolution 0.01mm (per step)
Valve Type Solenoid valve
ILS Syringe 25μl, 50μl, 100μl, 250μl, 500μl, 1ml, 1.25ml, 2.5ml, 5ml
Wetted material Borosilicate glass, PTFE, FKM, PEEK(PPS)
Max. Pressure Rating 0.2Mpa
Actuator Trapezoidal screw (Lead 6mm)
Connection 1/4-28UNF
Baud rate RS232/RS485: 9600bps, 38400bps
Communication addres Up to 15 individual addresses can be provided
Firmware Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory
Power supply DC24V/3A
Max Power  18W
Operating temperature

5°C~55°C
Operating humidity <80% relative humidity, non-condensing
Dimension (L*W*H) 65*150*261.3mm
Net weight 2.2kg
