Model TBX - Wireless Connection Between ...

Model TBX -Wireless Connection Between Load Cell and Indicator

FromGS Software Sp. z o.o.

SHARE

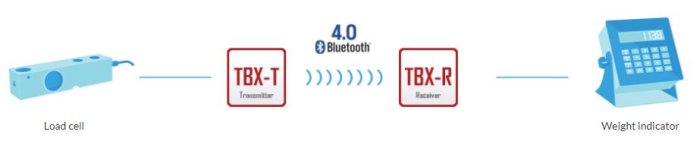

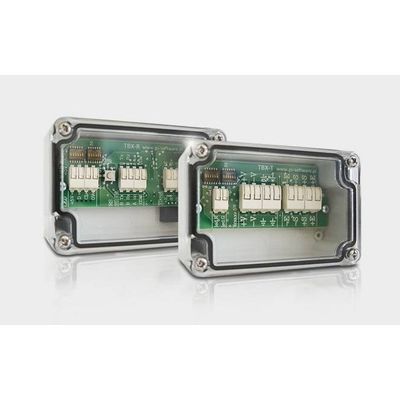

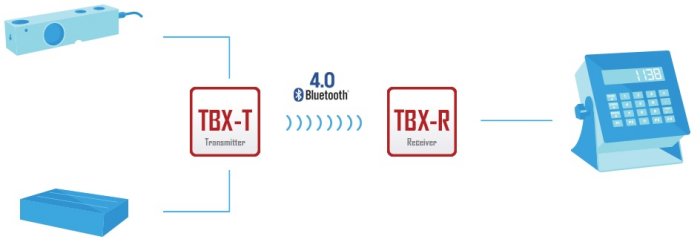

TBX System replaces the physical cable connection between the load cell and the weight indicator.

Most popular related searches

weight indicator

resistivity tool

weighing system

wireless load cell

temperature transmitter

Ultra-low energy consumption
Receiver powered directly from the load cell connector (no external power supply)
Indication of low battery status (via RS 232 port and LED diode)
Clamp connectors (vibration resistant)
Energy saving mode (sleep mode in the absence of a change in mass value)
An additional LED module indicating the status of the system

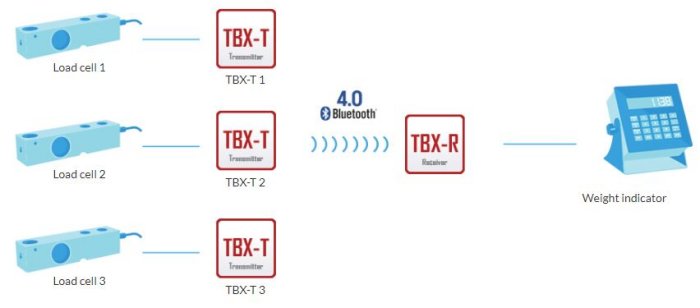

Many systems can be operated in one location (128 channels can be selected)

Category: Parameter

TBX-R (Receiver)

Receiver: Connected to the weight indicator as a load cell
Power supply voltage from the weight indicator: 5 - 10 VDC
Power consumption: max. 25mA
Constant emulated load cell: 2.0 mV/V
Emulated voltage: Proportional to the voltage come from the indicator
D / A converter: 16-bit, effective resolution 16-bit
Zero drift of amplifiers: <5ppm/K
Resistors in the analog circuit: 0.1%, 25ppm/K
Total error after calibration (estimated): max. 90ppm/K (0.009%/K)

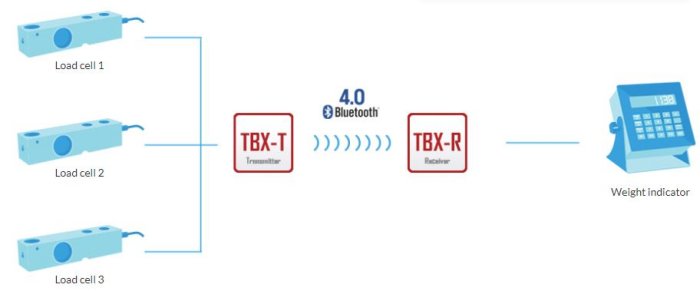

Number of transmitter connected to one receiver: 1 - 4
Number of channels: 1 - 128
Port RS 232 (RX, TX, COM): For signalling the battery status in the transmitter
Configuration button: To set the signal level in case of no connection with the transmitter
Working temperature: From -40°C to +85°C
Dimensions: 86x47x12 mm (without housing)

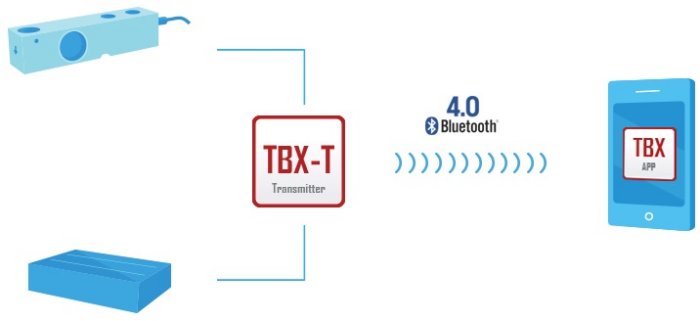

TBX-T (Transmitter)

Load cell excitation: ~2,8 VDC max 100mA
D / A converter: 16-bit, effective resolution 16-bit
Frequency of measurement: 4.17x/sek (max. 50x/sek)
Resistors in the analog circuit: 0.1%, 25ppm/K
Total error after calibration (estimated): max. 75ppm/K (0.0075%/K)
Power: 3.7 ~ 5 VDC (ie. 3 x AA battery, Li-Ion / Li-Po 3.7V)
Power consumption without load cell: < 5mA
Power consumption by a 360Ω load cell: 9.2 mA
Power consumption in sleep mode: < 0.3mA
Type of antenna: Integrated
Working temperature (without battery): From -40°C to +85°C
Dimensions: 86x37x9 mm (without housing)

Additional Information

Radio: Bluetooth 4.0 Low Energy 2.4 GHz
Working distance: 20 meters
Connectors: Clamp - vibration resistance
Tool for mounting connectors: WAGO 206-861
Compliance with the directives: CE, RED, RoHS, MD
