Model TC1 - CO1 -Temperature Controller with Oven

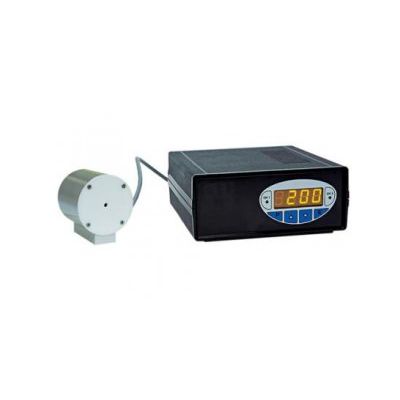

TC1 together with CO1 is a high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough RS232 computer interface it can be controlled from personal computer. Actual crystal temperature is shown on LED display. The nonlinear crystal is mounted into adapter before insertion into oven CO1. Such design facilitates handling and replacement of the crystal. The nonlinear crystal can be sealed with fused silica windows in order to provide extra protection. The standard adapters are 15, 30 and 50 mm. length with apertures of 3x3, 4x4, 5x5, 6x6 mm size. Customized adapters for crystals up to 12x12 mm size are available. In addition, adapters for Brewster-cut and PPLN crystals are available too.
