Transducers Direct LLC

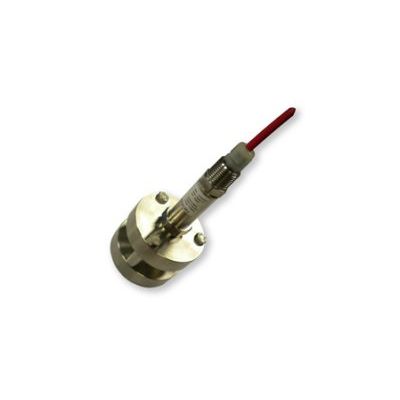

Model TDA85 -Submersible Pressure Transducer
Flush diaphragm transducer with debris avoidance standoff. Industry-standard 4-20mA output. Pressure ranges 0-5, 0-7.5, 0-10 and 0-15 PSIG. Accuracy of 0.25%. Long-term stability. Engraved 304SS housing with 316SS diaphragm. Lightning and surge protection. EMI/RFI and reverse polarity protection. Kynar PVDF cable. Compatible with wide range of chemicals. Rugged design for harsh waste water environments. Suitable for waste, salt, brackish, or fresh water systems
Most popular related searches
submersible pressure transducer
pressure transducer
water system pressure
salt water system
submersible system
brackish water
- Submersible Pressure Transducer
- Low Cost
- Flush diaphragm transducer with debris avoidance standoff
- Accuracy of 0.25%
- 4-20mA Output
- Engraved 304SS housing with 316SS diaphragm
- Lightning/surge protection
- Rugged design for harsh waste water environments
- Optional Suggested Desiccant Filter
