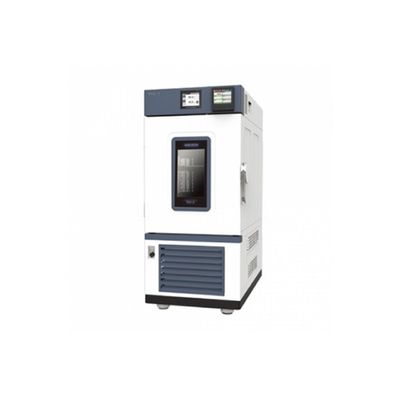

Model TH3-E-200/400 -Temperature & Humidity Chamber

Differentiated Systems

• Convenient operation with 5.6 inch color touch display controller.
• Possible to check the operation status with graphs.
• Minimize the occurrence of faults by simplifying water direct line and electric circuit.
• Water level check function enables water replenishment at the right time.

Structural functional features

• Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
• The door part is a double-sealed structure that provides enhanced airtightness.
• Maintains stable temperature and humidity by circulating air in the chamber at the optimum speed.
• Energy-saving system that can perform optimum temperature and humidity tests efficiently, reducing power consumption during operation.

Outstanding Safety

• Electronic over temperature shutdown system. (advanced over temperature (A-OT) limiter)
• Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown.
• General-type over power shutdown system. (B-OT, backup over temperature limiter)
• A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors.
• Ensures that the surface temperature is kept below 60°C.
• Low and empty water level alarm and automatic shut off.
• Door open warning and automatic shut off.
• Overcurrent and short circuit protection of device.
• Fuse installed for each heater for safety.
• Auto stop when operating current of compressor is overloaded.
• Auto stop when compressor is overheating.
• Auto shut off in case refrigerant pressure (high/low pressure) is abnormal.

Use Convenience Features

• Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
• Direct water supply system. (option)
• Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
• A structure that allows the door to be opened and closed easily.
• Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.

Multifunction Control System

• Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
• Reliable control with temperature/humidity auto-tuning and temperature calibration.
• PID zone subdivided into 9 zones for more precise control stability.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
