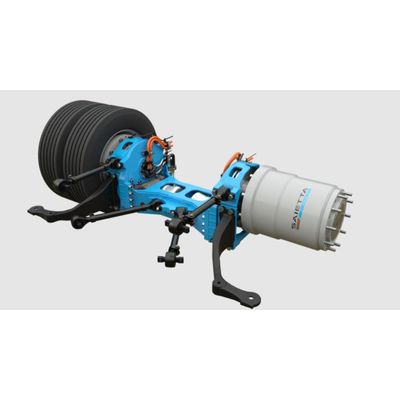

Model TheMotion 2.0 LF -Heavy Duty eDrives

Item: The Motion 2.0 LF

Centre Bridge Height: 348 (mm)

Center Bridge Width (2.55m axle): 696 (mm)

Ground Clearance: 134 (mm)

Production Technique: Weld assembly

Brake Components: Air Disc Brake 432 (mm) x 45 (mm)

Brake Performance (UNECE R13): Compliant

Booster Access: Boosters are located inside center bridge

Connection Module: Connectors with sealing

HV Connection: Upward oriented flange-mount connector

Coolant Connection: Inlet and outlet in the center

Available In 2,50m And 2,35m Width: No

In-Wheel Motor: TheWeel

Standard Tyre Size: 275 / 70 R 22,5

Nominal Life Time: Validated 1.000.000 KM or 12 years
