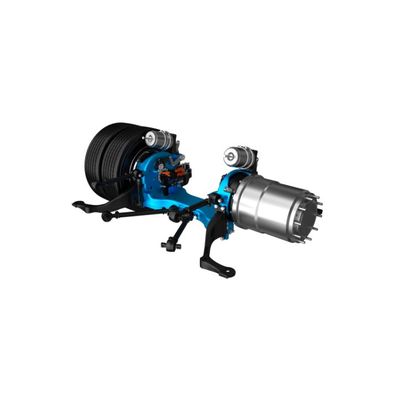

Model TheMotion 2.0 ULF -Heavy Duty eDrives

Centre Bridge Height: 264 (mm)

Center Bridge Width (2.55m axle): 793 (mm)

Ground Clearance: 140 (mm)

Production Technique: Casting assembly

Brake Components: Air Drum Brake 406 (mm) x 120 (mm)

Brake Performance (UNECE R13): Compliant

Booster Access: Boosters are located on top

Connection Module: Sealing using cable glands

HV Connection: Horizontal in-line connector

Coolant Connection: Inlet and outlet on the other side

In 2,50m And 2,35m Width: Yes

In-Wheel Motor: TheWeel

Standard Tyre Size: 275 / 70 R 22,5

Nominal Life Time: Validated 1.000.000 KM or 12 years
