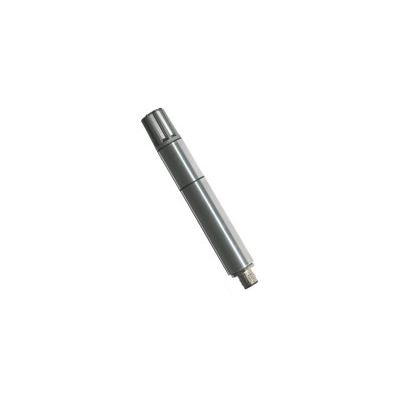

Model THP - Temperature Sensor

Model THP -Temperature Sensor

SHARE

It is an instrument for measuring combined measuring relative humidity, air temperature and air pressure. The sensor is characterized by an electronic energy saving. The filter membrane reliably protects the capacitive measuring element of air pollutants.

Most popular related searches

temperature sensor

barometric pressure

humidity measurement

filter membrane

hydrological monitoring

pressure and temperature sensor

air pressure sensor

air contamination monitoring

pollution monitoring

Combined instrument for use with high quality
Humidity measuring element
Under maintenance
Special resistance to air pollutants
Humidity signal output: RS 422 / talkative • NMEA
To use all climatic zones

Measuring temperature range: -40 ... + 70 ° C • relative humidity: 0 ... 100% rh • Barometric pressure: 500 hPa ... 1100

Resolution temperature: 0.1 ° C • Humidity: 0.1% RH • Barometric pressure: 0.1 hPa

Power supply: 4.8 ... 33 VDC

Dimensions: H 140 mm x Ø 20 mm

Wardrobe: specially coated aluminum • IP 65 (housing) • IP 65 (filter)

Weight approx: 80 g

Standard rhythms : NMEA 0183 • WIMHU • WIMMB • WIMTA
