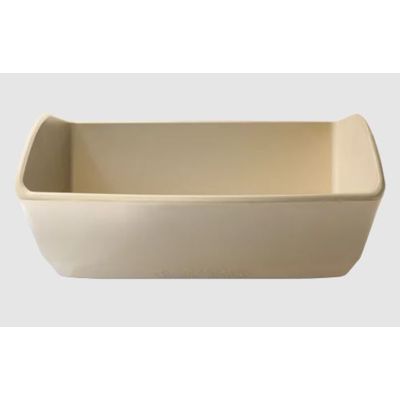

Model TIGER-CC -Maximum Duty Industrial Elevator Bucket
The TIGER-CC Industrial is a maximum duty industrial elevator bucket designed in the traditional CC style. The TIGER-CC is engineered to maximize bucket life and elevator capacity, reduce down time and lower maintenance costs. The TIGER-CC Industrial bucket has the thickest lip, back wall and corners to maximize bucket life and maintain capacity. Standard spacing is projection x 2. The most common applications include aggregate, sand, gravel, coal, gypsum, limestone, clay, cement and many, many more. The TIGER-CC Industrial is the maximum duty industrial bucket for your most demanding industrial applications.
DRILLING: Elevator buckets are manufactured without a drill pattern. Special drilling or punching can be accommodated upon customer request.
VENTING: Available as needed. See venting options in our catalog.
DIGGER BUCKETS: Use slightly larger metal digger elevator buckets to help loosen material in the elevator boot section that has set up or hardened, thereby reducing abrasion on the plastic buckets. Call for details on Metal Digger elevator bucket options.
SPACING: PROJECTION x 2 = STANDARD VERTICAL SPACING (depending on material and speeds, smaller and large spacing may be used).
INSTALLATION: Use a #1 standard elevator bolt or Sabre-Tooth elevator bolt for installation. Designed to be used with fender or flat and lock washers and hex or locking nuts. If buckets are being installed on chain, use hex head bolts, nuts and washers.
FDA: Both the urethane and polyethylene are designed to FDA specifications for direct contact with food products. Special food grade nylon is also available for high heat applications.
- Largest Capacity – Move More Material in a Single Row
- Thicker Corners
- Thicker Walls, Heavy Front Lip for Digging
- Cleaner Discharge
- Heat, Impact & Abrasion Resistant
- Non-Corrosive, Non-Sparking
- Extended Bucket Life
- Increases Elevator Capacity
- Lowers Elevator Maintenance
- Decreases Elevator Down Time
