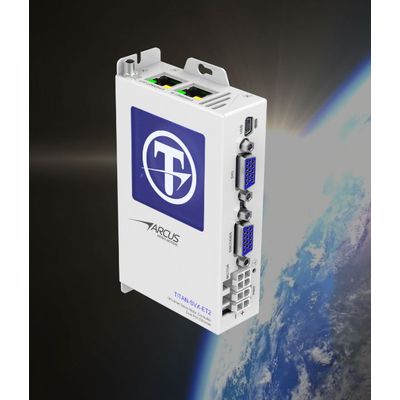

Model TITAN-SVX-ET2 -Dual Ethernet Servo Motor Controller

SHARE

Features: The TITAN-SVX-ET2 is a Dual Ethernet Servo Controller that is able to handle most of the commonly used motors in the industry: Stepper, Brushless Servo, Linear, Shaft, DC and Voice Coil Motors. Supports USB and Ethernet communication. Comes with many advanced motion control features: Auto Parameter Detection, Auto Tuning, Force/Torque control, and Multi-thread Motion Programming. Uses the intuitive and easy-to-use TITAN Software that enables anyone to startup the servo motion system within minutes

Most popular related searches
  • USB Mini-B connector
  • Dual RJ45 connectors for Ethernet communication
  • 15 pin HD DSUB connector for encoder/hall sensor
  • 15 pin HD DSUB connector for motion I/O
  • 4 pin Mini-fit Jr for motor
  • 2 pin Mini-fit Jr connector for Motor power
  • 2 pin Mini-fit Jr connector for Logic power
  • USB 2.0 using Virtual COM Port
  • Dual Ethernet communication with built-in switch
  • Protocols Supported: TITAN ASCII, TITAN ASCII with CRC, MODBUS  ASCII, MODBUS RTU, TCP
  • 4 Opto-isolated NPN 24V Compliant Digital Inputs (Including +Limit, -Limit and Home Inputs)

  • 3 Digital Outputs (1 Opto-isolated, 1 solid state relay and 1 MOSFET)

  • Motor Power: 24VDC to 48VDC
  • Logic Power: 24VDC to 48VDC
