Model TPHP Series -Multistage Centrifugal Pump
The TPHP pumps are primarily designed for industrial applications:Water supply and pressure boosting Air-conditioning Water treatment Heating and cooling in industrial processes Industrial washing and dish-washing machines Softened water Pressure boosting of process water Fertilizer/dosing systems.
Most popular related searches
multistage centrifugal pump
centrifugal pumping
centrifugal pump
multistage pump
multistage horizontal centrifugal pump
horizontal multistage pump
horizontal centrifugal pumping
horizontal centrifugal pump
process water
water softening

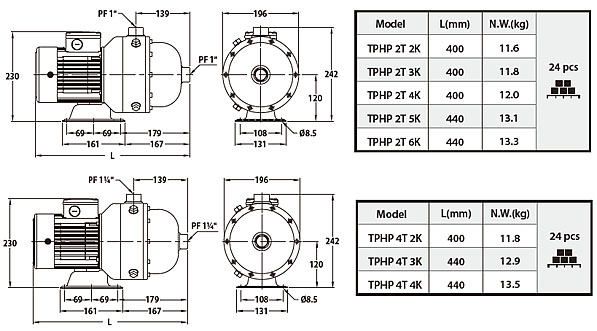

Horizontal, multistage centrifugal pump of the non selfpriming type with extended pump/motor shaft and fitted with a mechanical shaft seal.Compact pump unit with small physical dimensions,axial suction port and radial discharge port.
- Enclosure protection class:IP54
- Insulation class: F.
- Frequency range: 50 / 60Hz
- Nominal speed: 2900 / 3500 rpm
- Standard voltages: 3Ø200-240 / 380-440V, 50Hz ,3Ø200-255 / 380-480V, 60Hz.
- Ambient temperature: Max. +40°C
- Liquid temperature range: +0°C ~+90°C
- Operating pressure: Max. 10kg/cm²
- Inlet pressure: Max. 6kg/cm²
