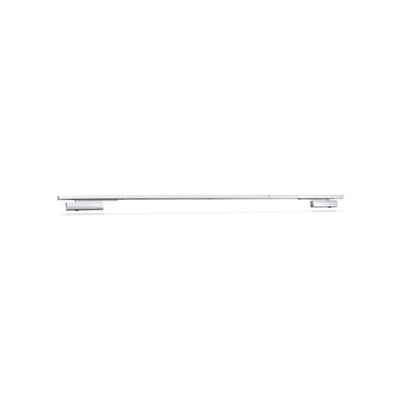

Model TS 5000 R-ISM -Overhead Door Closer System

System comprising two door closers TS 5000 and an R-ISM guide rail. Closing force of EN2-6 with variable adjustment. Operating voltage 230 V AC. Can be used for right and left hand doors without conversion. Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed. Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire. Smoke switch with contamination indicator and adaption of the alarm threshold. Additional smoke detectors can be fitted. Electric hold-open device in the guide rail with hold-open area of 80°-130°. Hydraulic latching action which accelerates the door shortly before it is closed. Closing speed can be individually adjusted. Integrated back check, slows down doors that are thrown open forcefully. Visual closing force display for easy control of the setting. All functions can be adjusted from the front.
