TANDA Development Pte.Ltd

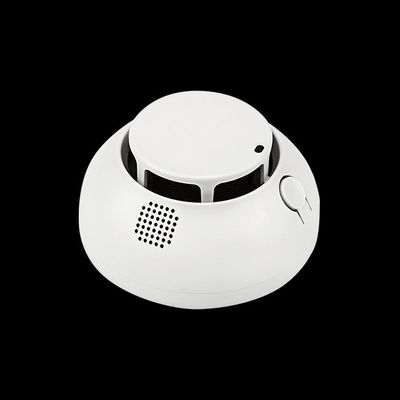

Model TX3190 -Stand Alone Detector
TX3190, TX3190-NB NB-IOT and TX3190-LoRa LoRa Smart Smoke Detector are used to detect the smoke from the fire disaster. The detector adopts MCU with excellent performance. The chipset is built in special program to identify fire disaster and fire forecast base on the environment performance, built in NB-IOT/LoRa communication chipset to connect to IOT platform/LoRa station. Widely used in home automation, store security and other fire safety monitoring. Support strong belling to notify the alarm. Support anti-noise.
Most popular related searches
remote fire alarm system
fire alarm system
remote fire alarm
fire safety monitoring
smoke detection system
fire alarm
safety monitoring
fire safety
indoor alarm
fire monitor
- signal automatic compensation, detect the change of environment to ignore the miss-alarm.
- Self-checking function.
- Faulty alarm, firm alarm, battery notification.
- NB-IOT/LoRa wireless network is used for wide signal coverage and penetration.
- Easy installation and maintain.
- Real time to monitor the alarm system from IOT platform.
- Low power consumption and long service life.
- Full seal protection technology
|
Voltage |
DC 3V |
|
Current |
Monitor<40uA, ALARM<140mA |
| Alarm Bell | 45~75dB |
| Communication | NB-IOT/ LoRa |
| Indicator |
Normal:Every 50s red flash,no belling Alarm:Fast red flash,continue belling Faulty:Every 50s red flash, short belling |
|
Operating Environment |
-10?~+55?,Less than 95%(non-condensing) |
| Material/Colour |
ABS/White Glossy finishing |
| Dimensions | 100.3mm×46.8mm |
| Weight | 113g |
