Model ULTRIS 5 -Hyperspectral Imaging Camera

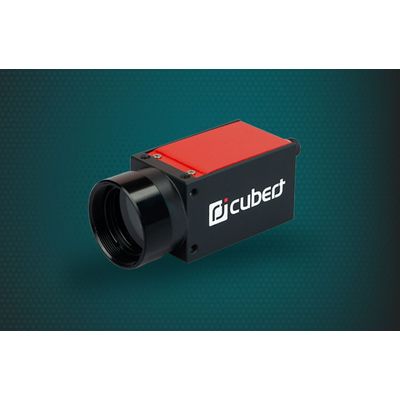

Cubert’s smallest ever hyperspectral imaging camera is also its most affordable, to a price that can easily compete against RGB and multispectral cameras. By downsizing the fundamental light field technology of the ULTRIS 20, we have created a hyperspectral video camera featuring a 5 MP sensor that is just 30x30x50 mm and weighs only 120g.

The ULTRIS 5 is one of the smallest hyperspectral videocamera on the market and is a real workhorse, able to be integrated into a multitude of scenarios. It covers the same spectral range as the first ULTRIS 20, (450-850 nm – VNIR), with a sampling rate of 8 nm, a total of 51 bands, and a frame rate of >15 Hz. The resolution is 290 x 275 pixels, so >25x higher than the resolution of the FireflEYE V185. The ULTRIS 5 makes hyperspectral imaging cost effective where it hasn’t been until now.

The new Relay Lens adaptor allows the mounting of any C-Mount objective onto both the standard ULTRIS 5 and new HFR version. The adapter allows any lens, including macro optics or fish eye lenses, to instantly be mounted onto the camera. With the Relay Lens, the camera can even be mounted on more complex optical systems, such as microscopes, endoscopes or industrial inspection systems. The Relay Lens is a huge step forward in bringing hyperspectral light field technology to biomedical applications.
