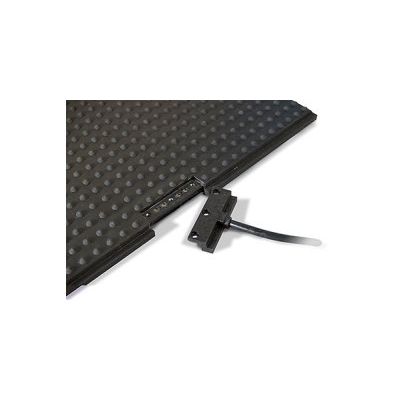

Model UMQ Series -Quick-Disconnect Universal Safety Mat System

• Fork lift traffic of 270 lbs. per square inch
• IP67 rated
• Mat flammability self extinguishing, meets UL94VO
• Single-piece molded construction
• Black or yellow color
• Damage to cables during installation is eliminated by positioning the cables after mat installation
• Easy cable replacement
• Six cable location options offer the ability to configure where cable exits

The operation of a Quick-Disconnect Universal Mat system is easy to understand. The mat is a simple, normally open switch. When a specified minimum weight is applied to the mat the "switch" closes. This sends a signal to the controller which, in turn, sends a stop signal to the guarded machine.Each mat presents four wires to the controller. This provides the redundancy required to monitor the wiring for open circuits due to incorrect wiring or physical damage to the wires. In order to meet many national safety regulations, we offer trim to secure the mat to the floor so that it cannot be easily relocated and therefore become ineffective.

When UMQ series mats are combined with an MC3, MC4 or MC6 controller (with complete diagnostics), the result is a system that meets the standard EN 1760-1:1998 and is entitled to display the CE mark. See below for an overview of the various components.
