Model UNI 220x240 -Horizontal Drilling Machines

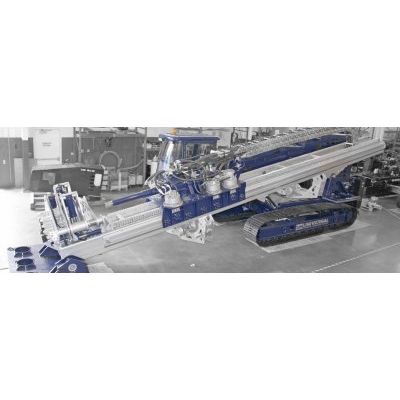

Universal HDD’s UNI 220x240 horizontal directional drill was specifically developed for heavy and long range construction applications; well-matched and industry leading components provide optimal use of engine power, torque and rotation which promotes high performance, high productivity, high power and ensures long machine life.
Operation
Thrust force:220,000 lbs
Pullback force:220,000 lbs
Rotation (low):160 rpm
Rotation (high):80 rpm
Torque (low):24,000 ft/lb
Torque (high):12,500 ft/lb
Entry angle:12-18 degrees
Power
Engine:John Deere
Gross Power:400 hp
Fuel:Diesel
Additional:Turbo
Drill Pipe Characteristics
Length:20 ft (6.09 m)
Diameter:4 inch (10.16 cm)
Dimensions
Height:115 inch (292 cm)
Width:100 inch (254 cm)
Length:484 inch (1,234 cm)
Weight:70,000 lb (31.75 ton)

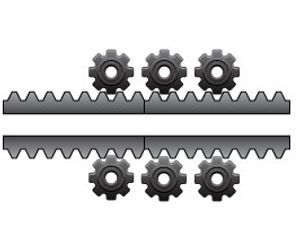

Double Rack & Pinion
- Double rack & pinion designed to maximize push/pull capacity, while eliminating unnecessary waste of power
- Vertical configuration allows drastically reduce wear and tear on key components and parts
Diagnostics Ports
- Effortless run diagnostics with diagnostics ports
- Onsite testing capabilities
- Eliminate the need for expensive and complicated proprietary testing equipment and computers
- Easy to operate
High Performance Motors
- Our high performance motors designed produces much higher volumetric and mechanical efficiencies than is possible with a standard vane type design
- The 57 Series has four stator cavities and 10 rotor vanes. Each rotor vane works in each stator cavity once per revolution, which results in 40 power strokes per revolution. This helps produce higher mechanical efficiency and flatter torque curves
Integrated MFD Remote
- The MFD can accept telemetry signals from 4* different DCI manufactured receivers: F2™, Eclipse®, Mark III, and Mark V
- MFD unit can also be used with the Eclipse® TensiTrak® Pullback and Pressure Monitoring system
Remote Control
- Safely load, unload, and maneuver the horizontal directional drill from a distance
- Increased safety and visibility
- Optional wireless capabilities
On-board Crane
- Our crane is rated at 3960 lb and features a horizontal reach of 13 ft
- Superior lift-to-weight ratio
- Long-reach capabilities
- Hexagonal booms for superior reach and maximum control
- Radio remote control options

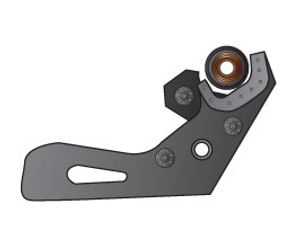

Rod Arm
- Preloads next drill pipe for continuance working cycle
- Reduces loading and unloading time
- Reduces manpower cost
- Easy to operate
