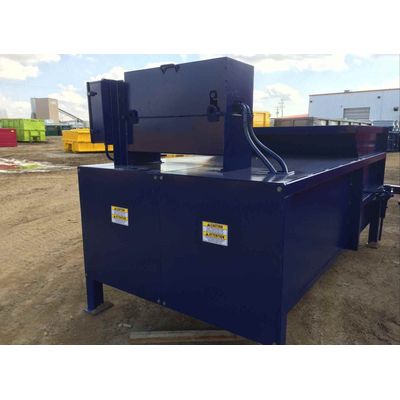

Model UP2000/UP3000/UP4000 -Three Commercial Compactor
Universal Handling provides three Commercial Compactors for handling large dry waste. To determine which is required we look at your required hopper capacity, charge opening, ram face and ram penetration. Extra large clear top opening. Efficient compaction and removal of large items. Multi function control panel. remote power unit and panel available. Available with various chute applications. Easy to operate automatic cycle.
Most popular related searches
SPECIFICATIONS - UP2000
- Manufacturer Rating: 2 Cu/Yrd
- NSWMA Rating: 1.92 Cu/Yrd
- Clear Top Opening: 48.75"
- Width: 57.25"
- Chamber Length: 50"
- Force Rating Normal: 27.7/49,500
- Force Rating Max: 31.7/56,500
- Systems Pressure Normal: 1,750 PSI
- System Pressure Max: 2,000 PSI
- Ram Stroke: 70"
- Ram face Height: 30"
- Ram Face Width: 59.5"
- Ram Penetration: 23"
- Discharge Opening Height: 43.25"
- Discharge Opening Width: 61"
- Base Unit Weight: 5,200 lbs
SPECIFICATIONS - UP3000
- Manufacturer Rating: 3 cu yd
- NSWMA Rating: 2.7 cu yd
- Clear Top Opening: 69.5"
- Width: 57.75"
- Chamber Length: 69.5"
- Force Rating Normal: 27.7/49,500
- Force Rating Max: 31.6/56,500
- Systems Pressure Normal: 1,750 PSI
- System Pressure Max: 2,000 PSI
- Ram Stroke: 84"
- Ram face Height: 30"
- Ram Face Width: 59.5"
- Ram Penetration: 14.5"
- Discharge Opening Height: 37.5"
- Discharge Opening Width: 61.25"
- Base Unit Weight: 6,500 lbs
SPECIFICATIONS - UP4000
- Manufacturer Rating: 4 cu yd
- NSWMA Rating: 3 cu yd
- Clear Top Opening: 78"
- Width: 57.75"
- Chamber Length: 78.5"
- Force Rating Normal: 27.7/49,500
- Force Rating Max: 31.6/56,500
- Systems Pressure Normal: 1,750 PSI
- System Pressure Max: 2,000 PSI
- Ram Stroke: 93"
- Ram face Height: 30"
- Ram Face Width: 59.5"
- Ram Penetration: 14.5"
- Discharge Opening Height: 37.5"
- Discharge Opening Width: 61.25"
- Base Unit Weight: 7,500 lbs
CONSTRUCTION FOR ALL MODELS
- Packer Walls: 1/4" Plate
- Packer Floor: 1/2" Plate
- Ram Floor: 3/8" Plate
- Ram Face: 1/2" Plate
- Hydraulic Cylinder Bore 6": 6"
- Hydraulic Cylinder Rod 4": 4"
- Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
DESIGN
- Cabinet or Through wall hoppers
- Two way pick-up
- Free standing or packer mounted dump units
ELECTRICAL
- 3/4 full light
- Safety interlocks
- Tank heater
- Upgrade to 15 or 20 HP
PAINTING
- Wide arrange of available paint colours
- Will match customer sample when provided
