Model UPU 2500 -Panel-Tuning Ultrasonic Measuring System
The Panel-Tuning Ultrasonic Measuring System UPU 2500 is the optimum measuring system to guarantee the quality standards required today. The UPU 2500 was developed especially for the measurement of thick panels. It is optimally designed to detect blows in particleboard, MDF or OSB boards up to a thickness of 100 mm. The quality of LVL panels can be measured up to a thickness of 200 mm. Hidden defects within the panel are reliably detected, marked and a signal to sort them out is given. The visualisation system clearly represents the size and position of the defects.
Your Benefit by using the UPU 2500
- Quick and timely recognition
- of quality deviations
- Detects, marks and visualises defects
- Fast visualisation of the consequences
- of changes in the production
- (intentional or unintentional)
- Especially designed for “thick panels”

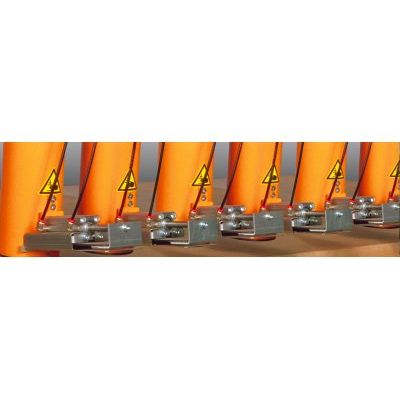

The inspection channels are mounted on a frame, which is made out of aluminium profiles. The cable and compressed air ducts are integrated in the profile and thus protected against surroundings. The transmitters, which are installed below the material to be measured and are optimised especially for thick panels, create the necessary ultrasonic energy. The emitted ultrasonic pulse is directed to the receivers through the panel.
