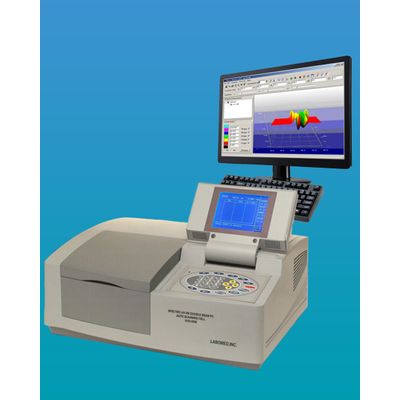

Model UVD-2950 -Spectro UV-VIS Double Beam PC Scanning Spectrophotometer

Spectro UV-Vis Double PC (Model UVD-2950) utilizes a new optical system design and is microcomputer controlled. With its focused-beam design, the system provides optimal and reproducible results for small samples. The sample beam and the reference beam are provided within the same sampling
space, facilitating a wider and longer scan of data, providing a more detailed view of the results in an easy to use environment. This instrument has excellent baseline stability and high resolution and permits scanning, quantitative analysis, kinetic spectrophotometric analysis and DNA/RNA analysis through PC control. This product is capable of processing data, from analytical and spectrum testing.

• Baseline Stability: The Double beam monitoring ratio system enhances baseline stability.
• 1nm fixed bandwidth New! : The Double beam monitoring ratio system enhances baseline stability.
• Excellent Resolution: The big-caliber light path enhances the instrument’s energy, reduces its noise and raises its resolution performance.
• 2 Cell Holder: Spectro UVD-2950 has 2 cell holders for reference (standard) and sample.
• User-friendly light source: The light source performs an automatic interchange, selectable within the working range of the light source. The socket deuterium lamps and tungsten lamps facilitate light source replacement, simplify maintenance and reduce operation error.
• Convenient Display: The large backlit LCD screen displays both photometric values and spectral curves.
• Full use of Computer Technology: Being computer controlled with RS-232 interface and working on the Windows platform with the UV/Win application software.
• The key components are all adopted from the world famous manufacturer, such as deuterium lamp, silicon photodiode and holographic grating, which ensures the stabilization and credibility of the Instrument for extended life.
• Computer System is optional (NOT INCLUDED).

OUR NEW SOFTWARE UV-WIN 6.0
WITH 3D SPECTRA

Now all Labomed, Inc. split and double beam spectrophotometers with our newly developed software called UV-Win 6.0 can be used with Windows XP, Windows 7 and Windows 8. It is capable of testing more applications with its RS-232 and USB connections, and supports the data export of measured results to the PC and then, if required, a USB flash drive, when additional data storage is required. One of the new features is that it provides 3-D graphing of the spectral results.

• Photometric Measurement: Measuring transmittance or absorbance at the current wavelength together with K factor calculations.
• Spectrum Scan: Carrying out scanning of transmittance or absorbance on the selected wavelength range together with peak-pick module.
• Quantitative Determination: Regression of standard curves and direct determination concentration of samples.

PC Windows Application Software (RS-232 Interface) to link Spectro to computer and printer:

• Photometric Measurement: Measuring the photometric values at 1-10 wavelengths together with mathematical calculations according to entered quotations.
• Spectrum Scan: Producing Wavelength scans within the operating parameters on samples together with powerful data handling facilities.
• Quantitative Determination: Determination of unknown concentration with methods of 1-3 wavelength quantitation, together with fitting of calibration curve of 1st ~ 4th order.
• Kinetics: Recording curves of changing photometric values of samples against timecourse at the selected wavelengths together with powerful data handling facilities.
• Output: With the Windows clipboard, the measured data and graphics can be copied to other applications software for reports.
