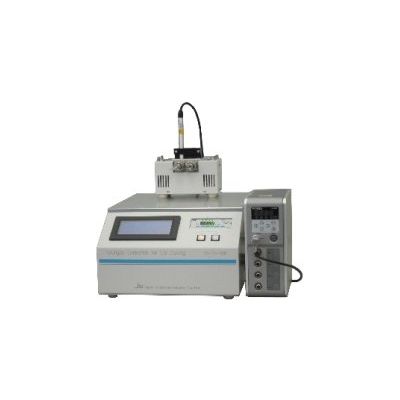

Model UVHM-4000 -For UV Curing Resin (Outgas While Hardening)

• Practical Sampling method
• Trap and collect outgas whilst UV curing is UV irradiated.
• Collect outgas from the same sample after UV cured too.
• Leave the UV cured sample in the chamber and heat it to collect outgas.
• Large chambers for effective collection
• UV curing chamber：φ16×100mm
• Outgas chamber：60(W)×20(W)×200(D)mm
• Dual purpose outgas collector
• In addition to UV curing sampling oven, UVHM-4000 comes with conventional outgas collector oven as standard equipment. 1 controller unit operates 2 overs.
• For outgas collector oven, the maximum temp. is up to 400.

• UV curing sampling oven
• Number of Sample chamber: 2
• Sample chamber material: Quartz glass
• Oven heater: Resistance heating
• Sample chamber capacity: φ16 x 100 mm (20mL)
• Power supply: From controller unit
• Weight:2.5kg

Outgas collector oven

• Number of Sample chamber: 2
• Sample chamber material: Quartz glass
• Oven heater: Resistance heating
• Oven temp.: up to 400°C
• Sample chamber capacity: 60(W) x 20(H) x 200(D) mm (220mL)
• Power supply: From controller unit
• Weight:8kg

Controller unit

• Flow controller : Digital Mass Flow Controller
• Purge gas flow rate : Maximum 2.00 L/min
• Purge gas: N or He for general use
• Temperature controller : Digital controller
• Dimensions/weight: 300 W X 178 H X 530 D (mm) /13kg
• Power supply: AC 100 V, 50/60Hz　800VA
