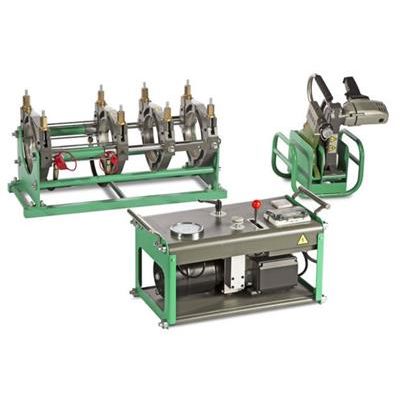

Model V160 -Hydraulic Butt Fusion Welder

• Removable PTFE coated heating plate with separate temperature control system.
• Electrical planning tool;
• Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
• Low starting pressure ensures reliable welding quality of small pipes;
• Separate two-channel timer shows time in soaking and cooling phases;
• High-accurate and shockproof pressure meter in indicates clear readings.

V160 includes:

• A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
• A Teflon coated heating plate with separate temperature control system;
• A electrical milling cutter;
• Hydraulic hoses with quick couplings;
• Support for milling cutter and heating plate.

Available options:

• Data logger
• Support roller
• Stub end holder
• Different inserts (single insert, ISO inserts)

• Welding ranges: 63mm－160mm
• Reducing Inserts: 63mm－75mm－90mm－110mm－125mm－140mm
• Ranges of application: PE，PP and PVDF
• Working voltage: ～220V±10%，50Hz
• Total power: 2.95 kW
• planning tool: 1 kW
• heating plate: 1.2 kW
• hydraulic unit motor: 0.75 KW
• PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°
• Environment temperature: －10° ～ 45°
• Electronic count-down timer for heating and cooling time.
• Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit and  support (for planning tool & heating plate)
