Model V200 -Hydraulic Butt Fusion Welder
V200 is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps` drag bar. It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Most popular related searches
digital temperature controller
buttweld pipe fitting
data logger
plastic pipe
pipe fitting
plastic piping
plastic piping fitting
plastic pipe fitting
butt welded fitting
hydraulic cutter
- Removable PTFE coated heating plate with separate temperature control system.
- Electrical planning tool;
- Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
- Low starting pressure ensures reliable welding quality of small pipes;
- Separate two-channel timer shows time in soaking and cooling phases;
- High-accurate and shockproof pressure meter in indicates clear readings.

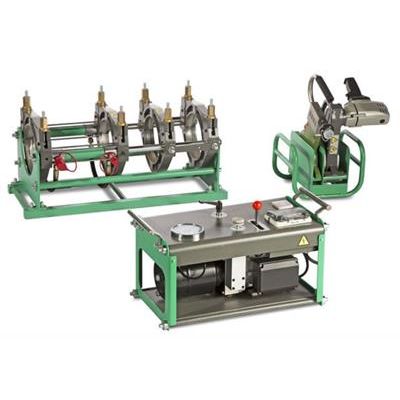

V200 includes:
- A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
- A Teflon coated heating plate with separate temperature control system;
- A electrical milling cutter;
- Hydraulic hoses with quick couplings;
- Support for milling cutter and heating plate.
Available options:
- Data logger
- Support roller
- Stub end holder
- Different inserts (single insert, ISO inserts)
- Welding range: 63mm - 200 mm
- Reducing inserts: 63mm - 75mm - 90mm - 110mm - 125mm - 140mm - 160mm - 180mm
- Power supply: ～220V±10％, 50HZ
- Total power: 2.95 kW
- Heating plate: 1.5 kW
- Planing tool motor: 0.7 kW
- Hydraulic unit motor: 0.75 kW
- Dielectric resistance: >1MΩ
- Max. Pressure: 6 MPa
- Volume of oil box: 3L
