V-Farm

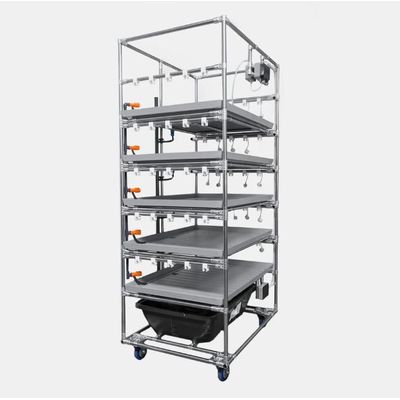

Model Vf5222 -5 Layer Flood & Drain System
FromV-Farm
This V-Farm is mostly used for in-store/restaurant high value microgreen production, used for in-store marketing, research and scaled trial purposes. It can also be used for propagation.
Most popular related searches
water level control
water level controller
pump controller
level controller
water control
water valve control
water pump controller
water pump control
water digitization
drainage valve
- Adjustable lamp heights
- On wheels and easy to move
- Supplied with integral tank, pump and light/pump controllers
- Optional Fully App controlled and nutrient dosing add-ons available
Production Example: 4.6m2 of baby leaf or microgreens per crop.
Supplied with Spectron T8 LED lights, option using Valoya T8 lights are available, contact us if required.
With on-board tanks, it allows you to run a number of these smaller units all growing different crops which may have different nutritional demands.
Ideal Crops
Mature crops
Leafy greens & Herbs
Medicinal & Sea of Green
Depth: 90cm
Height: 240cm (The height can be amended to allow the system to fit inside a container)
Weight: 112kg (without water/crop)
Width: 126cm
- Materials - Food grade stainless steel frame
IP67 LED lamps?
Food grade plastics - Power Usage: 25 LED lights @ 20w - 500w power consumption
- Patented modular rolling design
- 5 layers, each holding a 1200 x 800mm tray (Max internal dimensions 1180mm x 770mm)
- Maximum Crop Height: 190mm
- Growing area: 0.9086m2 per layer or 4.543m2 per rack
- Lights: 20 per rack of 1200mm spectron GB white 20w T8 LED`s
- 100L Nutrient tank with variable speed pump (Max working volume ca. 90L)
- Four wheels (two lockable) for easy movement
- Independent drainage and fill valves for water level control
- Digital pump timer interface and mechanical light timer
