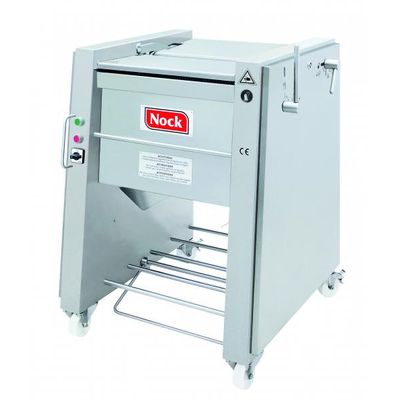

Model Vliesex V 460N -Membrane Skinner

cutting width: 430 mm

cutting speed: 44 m/min

features:

• particularly good value membrane skinning machine with high operational speed and very high yield
• industry suited construction

application:

to remove the membrane from pork, beef, veal, lamb, turkey, game, poultry

• Trapeze-shaped casing for maximum stability when transporting the machine over uneven surfaces
• NEW: Storage plate for centering the stacking container (E1, E2), can be removed without tools
• NEW: Access protection at the rear for more safety at work
• high precision transport roller without grooves and spring suspended blade holder for very low loss of expensive meat
• dynamic (counter rotating) stainless steel cleaning roller and the NOCK Air Jet compressed air cleaning system keep the transport roller constantly clean during operation. Thereby reliable gripping, quick and easy processing and an excellent operational hygiene are guaranteed.
• blade holder with captive screws
• fine adjustment of the blade gap to skin products with thick membrane (e.g. beef)
• adjustable pressure reducer
• boxes can be placed under the machine from the front or back
• ergonomic favourable safety foot switch bar, adjustable in height
• 15 mm thick NOCK POWER PLATES® installed in the machine casing provide constant precision and service friendliness
• safety switch for processing table
• lockable castors
• stainless steel

• NOCK IMMEDIATE CUT-OUT® (ICO) safety system
• blade holder with quick change system
• brake motor

cutting width: 430 mm

cutting speed: 44 m/min

overall dimension W x H x D: 750 x 970 x 700 mm

weight: 150 kg

motor performance: 0.75 kW

electrical connection:

3 AC - 400 V - 50 Hz

IEC 60309 16 A 6h

other voltages upon request

compressed air connection:

5 < p <10 bar

plug coupling DN 7.2 (G1/4 external)

compressed air requirement: approx. 250 l/min (ambient pressure)
