Model VN2000 -Direct Insertion Vortex Flow Meter

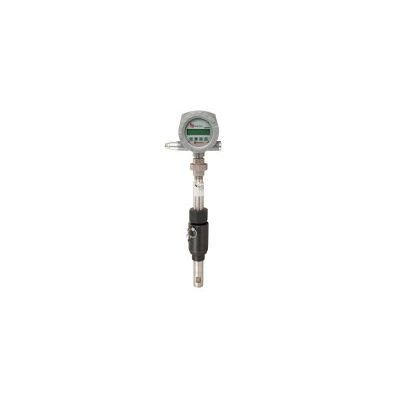

The VN2000 Compact Direct Insertion Vortex Flow Meter measures the volumetric or mass flow rate of steam, gases or liquids over a large flow range. The meter is a heavy duty design engineered to stand up to the most abusive environments inside and outside the pipe. The meter includes a mounting assembly to simplify the installation and ensure proper installation depth and orientation for a specified pipe size. Additionally, the probe length is sized to match the pipe size to minimize the meter length.
The VN2000 Compact Direct Insertion Vortex Flow Meter measures the volumetric or mass flow rate of steam, gases or liquids over a large flow range. The meter is a heavy duty design engineered to stand up to the most abusive environments inside and outside the pipe. The meter includes a mounting assembly to simplify the installation and ensure proper installation depth and orientation for a specified pipe size. After depressurizing the pipe and welding the mounting assembly on to the pipe, simply insert the VN2000 Compact meter into the mounting assembly and align the meter so the pin can be inserted into the mounting assembly. When the pin is inserted, you are ensured that the meter is inserted to the proper depth and is aligned with the flow. The pin also acts as a secondary method to prevent the meter from coming out of the pipe once the pipe is pressurized.
- Reliable measurement for steam and a variety of fluids
- Reduce installation errors
- Reduce maintenance cost
- Reduce spare parts
- Measure volumetric flow, mass flow with temperature compensation or BTU/energy
- Durable stainless steel design
- Mounting kit for proper installation
- No moving parts to wear
- Integrated RTD for mass flow or BTU/energy eliminates a hot tap
- Seal-free sensing element eliminates leak paths to electronic sensors
- Single meter for multiple pipe sizes
- Dual sensor technology reduces noise interference
- No zero drift
- Self-cleaning sensing element
Software
Vortex VN2000 Sizing Software
VN2000 Line Sizes Spreadsheet
Specifications
Size 2...24 in.
Temperature Range -250...400 °F
Flow Range 13…38,500 gpm, 17…3,546,000 scfm , 55…5,629,000 lb/hr
Pressure Range Up to 1000 PSI
Accuracy +/- 1 %
Additional Specifications
Application Examples Saturated steam for heating, Deionized water, Compressed air, Wet or dirty gases
Industries Building Automation / HVAC, Water & Wastewater Treatment
