Model VPE 1000 -Ultrasonic Leak Detector

SHARE
The VPE 1000 Ultrasonic Leak Detector is a pioneering tool designed for precise ultrasonic detection in industrial settings. With advanced digital controls and a dedicated touch probe sensor, the VPE 1000 delivers exceptional sound quality and sensitivity. Its dual LED displays with peak hold function and the ability to set separate volume and sensitivity levels make it user-friendly. The device features dual sensors that operate independently and a wide dynamic range that enhances its effectiveness even in noisy environments. The ultrasonic detection works by identifying high-frequency sounds caused by friction, arcing, or turbulence and translating them into the audible range through a process called heterodyning. This method ensures only relevant ultrasonic signals are captured, eliminating interference from ambient noise, wind, and human voices. The VPE 1000 package includes a detector, flexible wave guide, 9V battery, headset, touch probe, carrying case, instructional CD, and user's manual, making it a comprehensive solution for leak detection and bearing defect discovery.
Most popular related searches
ultrasonic leak detection system
leak detection
wind noise
industrial noise
4-20ma signal generator
precision bearing
traffic noise

Ultrasound works by detecting the high frequency sound associated with friction, arcing and turbulence in industrial systems. These sounds are translated/converted down to the audible range where they can be heard in the headset and viewed on the meter. Translation is done by heterodyning –comparing the incoming signal with one generated by the meter. Our meters are most sensitive to sounds around 40 kHz, that’s twice the frequency of the best human hearing. Because we focus on a specific band of sound. wind noise, industrial noises, voices, traffic, and most normal operational sounds will NOT be detected. You can actually yell directly into the sensor and hear nothing. This exact frequency focus allows for precise leak detection and bearing defect discovery.

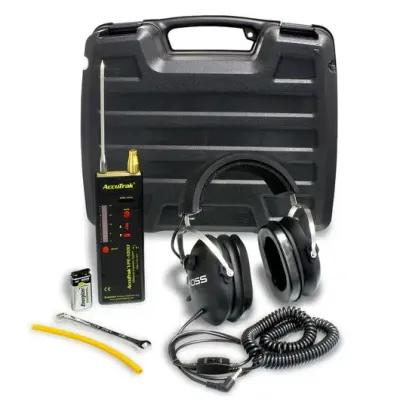

VPE-1000 Detector, Flexible Wave Guide, 9V battery, Headset, Touch Probe, Large CC-2 Carrying case, Instructional CD, Users Manual
