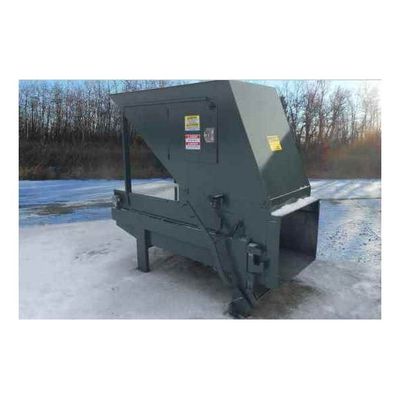

Model W1227 / S1830 -Apartment Compactor

• Automatic continuous cycling when the electric eye is activated
• Automatic shut off when cycle is completed or when container is full
• Compacts refuse to fraction of its original volume
• Remote power unit and panel available
• Independently rated by NSWMA
• Side access door

SPECIFICATIONS - W1227

• MFR Rating: .25 cu/yrd
• NSWMA Rating: .18 cu/yrd
• Charging Opening: 23"L x 27"W
• Charge Box Depth: 18 1/4"
• Ram Face: 27"W x 12"H
• Ram Penetration: 4 1/2"

PERFORMANCE - W1227

• Cycle Time: 50 sec
• System Pressure Normal: 1,000 lbs
• System Pressure Maximum: 1,200 lbs
• Ram Force Rating Normal: 9,600 lbs
• Ram Force Rating Maximum: 11,500 lbs
• HYDRAULICS/ELECTRICAL - W1227
• Reservoir Capacity: 6 Gal
• Cylinder Stroke: 32"
• Cylinder Rod: 1 1/2"
• Cylinder Bore: 3 1/2"
• Motor Voltage/Size: 208-600V/ 2HP

STRUCTURE - W1127

• Floor: 3/16"
• Ram Face: 1/4"
• Side Walls: 3/16"
• Shipping Weight: 1,800 lbs

SPECIFICATIONS - S1830

• MFR Rating: .625 cu/yrd
• NSWMA Rating: .32 cu/yrd
• Charging Opening: 28"L x 29"W
• Charge Box Depth: 28"
• Ram Face: 30"H x 18"H
• Ram Penetration: 4 1/2"

PERFORMANCE - S1830

• Cycle Time: 55 sec
• System Pressure Normal: 1,000 psi
• System Pressure Maximum: 1,200 psi
• Ram Force Rating Normal: 19,600 lbs

HYDRAULICS/ELECTRICAL - S1830

• Ram Force Rating Maximum: 23,500 lbs
• Reservoir Capacity: 10 gal
• Cylinder Stroke: 37"
• Cylinder Rod: 2 1/2"
• Cylinder Bore: 5"

STRUCTURE - S1830

• Motor Voltage/Size: 208-600V/ 5 HP
• Floor: 1/4"
• Ram Face: 1/4"
• Side Walls: 1/4"
• Shipping Weight: 2,500 lbs

Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.

DESIGN

• Custom chute extensions
• Thru the wall chutes
• Cabinet style hopper
• Single lever sidelocks
• Safety interlocks
• Tank heater
• 3/4 full light

PAINTING

• Wide arrange of available paint colours
• Will match customer sample when provided
