Model WCD-200C -Cable Recycling Machine

• Cheaper price
• Medium capacity
• Dry separator
• High recovery rate(99%)
• Small space required

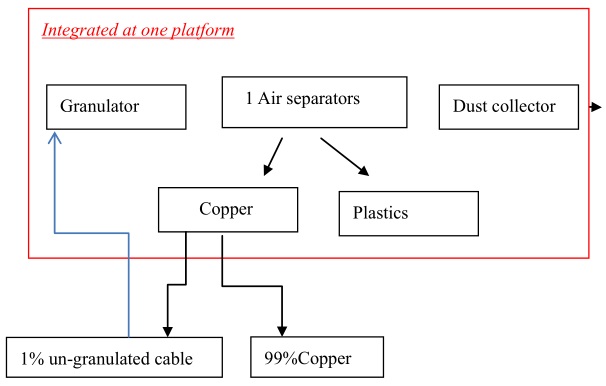

The compact cable recycling machine WCD-200C has 100% dry process with 1 granulator, 1 dry vibrating bed with air sucker,1 dust collector. The key parts are integrated at one platform with eco-friendly cover.

The type of cable applicable:

a) For waste cables with diameter of single core copper from 0.15mm to 8mm, recovery rate and purity of copper can reach 99%..

b) For thin hair cable with diameter of single core copper less than 0.15mm,5% copper will be sucked at plastics. This part will be sucked at granulator for second separating.

a) Compact design, granulator and separator installed at one compact platform.
b) No installation required, just connect power and then convert the cable into cash.
c) Full dry process , no water used.
d) Small space required:
e) Low noisy design
f) High efficiency of dust-collector
g) Eco-friendly

Data sheet of Mini cable recycling machine WCD-200C

• Diameter range of cable( copper core): Φ0.15mm-Φ20mm
• Separator: Air separator+ dry vibrating screen
• Dimension(LxWxH): 2460mm*2055mm*2660mm
• Machine weight: 1900kg
• Throughput capacity(hour): 100-200 kg/hour
• Motor Power: 15 KW +2.2KW+3*1.5KW
