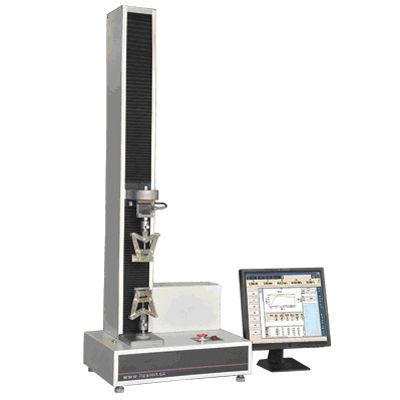

Model WDW-E -Tensile Tester (Economic Model)

Features:
Computer control, single column, Adopt Chinese make servo motor and driving system, Chinese brand load cell.

Main application:
Applications solutions include medical devices, biomaterials, textiles, elastomers, food, small components, wire, paper, plastic, film, fibers and threads, adhesives and many more.
Widely used for industrial application, factory quality control, science and research institute, QC &QA college student training, education institute, testing and inspection center, laboratories, construction company, aerospace, mechanical production, electric appliance fields.

Comply with different standards such as ASTM D638, ASTM D695, ASTM D790, ASTM D412, 624, ASTM D882, ISO 527, ISO 37, ISO 604, ISO 178 and other equivalent BS, ASTM, JIS standard.

Load capacity: 100N, 200N, 500N, 1Kn, 2KN, 5KN

Frame proof load capacity: 150% of rate capacity

Multiple load cell in one machine function: YES

Load Accuracy: Class 1 according ISO7500-1

Load cell overload capacity: 150% of rate capacity

Load measuring resolution: 1/300000 FS, stepless

Position / displacement resolution: 0.001mm

Crosshead travel: 1150mm

Tensile test space: 800mm

Compression test space: 900mm

Standard tensile test fixture: Corrugated Opposite clamping

Compression platen diameter: Φ100mm

Testing speed range: 0.001 mm/min~500 mm/min, stepless, adjustable arbitrarily

Weight: 110kg

Standard Power: 220/110V, 50/60HZ, 1 phase

Dimensions: 520×410×1500mm

Analysis software: SmartTest English version

Working system: MS Win7 / Win10
