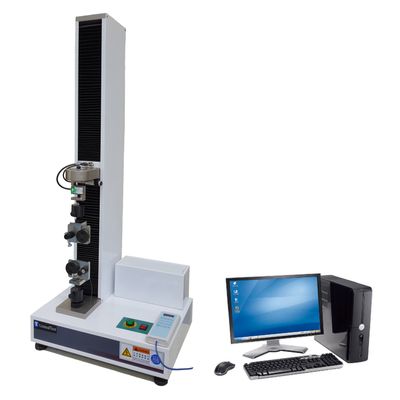

Model WDW-Y -Tensile Testing Machine
Single Column Tabletop universal testing systems can be used over a range of force applications up to 5 kN (500 kg). A variety of load cells are available to provide accurate measurements for applications ranging from micron-size fibers to those utilizing the full capacity of the load frame. Additionally, a full range of grips, fixtures, and strain measurement devices are also available.
Features:
Computer control, single column, Adopt Japan Panasonic/FUJI AC servo motor and driving system, USA Vishay Celtron load cell.
Main application:
Applications solutions include medical devices, biomaterials, textiles, elastomers, food, small components, wire, paper, plastic, film, fibers and threads, adhesives and many more.
Widely used for industrial application, factory quality control, science and research institute, QC &QA college student training, education institute, testing and inspection center, laboratories, construction company, aerospace, mechanical production, electric appliance fields.
Comply with different standards such as ASTM D638, ASTM D695, ASTM D790, ASTM D412, 624, ASTM D882, ISO 527, ISO 37, ISO 604, ISO 178 and other equivalent BS, ASTM, JIS standard.
Load capacity: 100N, 200N, 500N, 1Kn, 2KN, 5KN
Frame proof load capacity: 150% of rate capacity
Multiple load cell in one machine function: YES
Load Accuracy: Class 1/0.5 according ISO7500-1
Load cell overload capacity: 150% of rate capacity
Load measuring resolution: 1/500000 FS, stepless
Position / displacement resolution: 0.001mm
Crosshead travel: 1150mm
Tensile test space: 800mm
Compression test space: 900mm
Standard tensile test fixture: Corrugated Opposite clamping
Compression platen diameter: Φ100mm
Testing speed range: 0.001 mm/min~500 mm/min, stepless, adjustable arbitrarily
Weight: 110kg
Standard Power: 220/110V, 50/60HZ, 1 phase
Dimensions: 520×410×1500mm
Analysis software: SmartTest English version
Working system: MS Win7 / Win10
Load weighing system meets or exceeds the requirements of the following standards: ASTM E4, EN10002-2, BS 1610, DIN 51221, ISO 7500-1.
Test method standard like: ASTM D638, ASTM D695, ASTM D790, ASTM D412, 624, ASTM D882, ISO 527, ISO 37, ISO 604, ISO 178 and other equivalent BS, ASTM, JIS standard.
