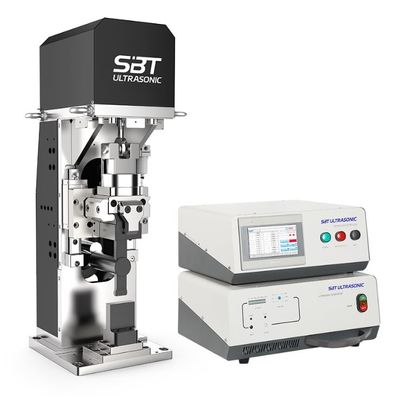

Model WE -Standard Wedge Ultrasonic Welder
Application: Multi-layer, thicker and larger welding area. Prismatic cell and pouch cell tab welding. Copper or aluminum cables welding. Copper or aluminum busbar welding.
Most popular related searches
- Tapered bar vertical welding mode
- Fully digital ultrasonic system
- 7-inch large touch screen display
- Welding horn without deformation
- Welding horn and anvil tooling are customizable
- Precise positioning
- Easy and safe operation
- Online welding monitor
Model: 2CS-WE Series
Frequency: 20kHz
Rated Power: 5-7kW
Transducer Power: 6-8kW
Welding Pressure: ≤7300N
Interact: Serial/Ethernet
NG Signal: I/O
Weight: 165kg
Welding Mode: Time/Energy/Height
