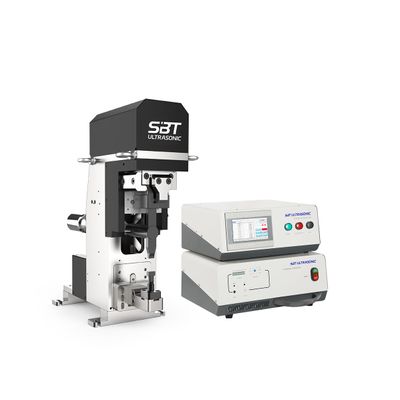

Model WES -Small Wedge Ultrasonic Welder
Application: Unprotected square shell battery. Prismatic cell and pouch cell tab welding. Copper or aluminum cable welding. Copper sheet or aluminum busbar welding
Most popular related searches
- Integrated wedge structure
- Compact and lightweight
- Wedge-Reed structure with no welding horn deformation
- Customizable welding horn and anvil tooling
- Accurate welding positioning
- Easy and safe operation
- Optional welding quality online monitoring system
Model: 2CS-WES Series
Frequency: 20kHz
Rated Power: 5-7kW
Transducer Power: 6kW
Welding Pressure: ≤4100N
Amplitude: ≤65μm
Interact: Serial Port/Ethernet
NG Signal: I/O
Height Detection Accuracy: 0.01?
Weight: 91kg
Welding Mode: Time/Energy
