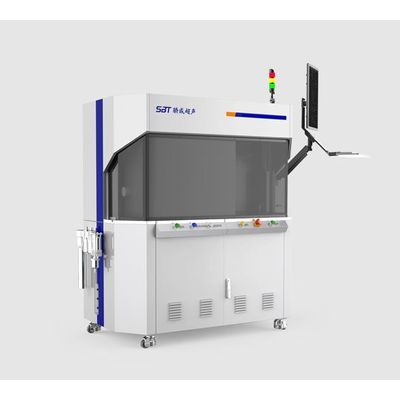

Model WL -Ultrasonic Wire Harness Welder

• Fully digital ultrasonic system
• Maximum welding power 14000 W
• Welding head and bottom mold support customization
• Easy to operate
• Customizable semi-automatic and fully automatic welding workbenches, supporting multiple wire entry methods and directions

Mode: Duration/Energy

Frequency: 20 kHz

Amplitude Setting: 10-70μm

Cable Size(Cu): 95mm² /120mm²

Power Supply: 380 V

Air Pressure: 0.6 Mpa

Protect: Password and parameter protection

Control: IPC control

Data: Traceable
